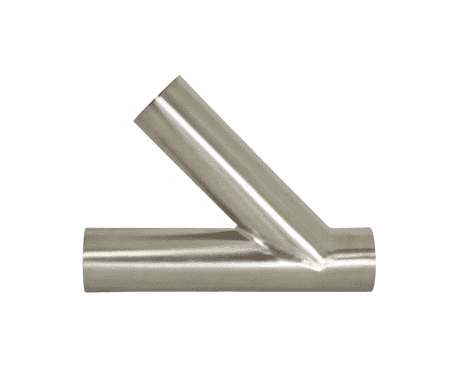

B28WA-R200P Dixon 316L Stainless Steel Sanitary Polished Weld Lateral - 2" Tube OD

B28WA-R200P Dixon Valve 316L Stainless Steel Sanitary Polished Weld Lateral - 2" Tube OD

Save $90.07 Save $90.07
$225.18
$225.18 - $225.18
$225.18
$135.11
$135.11 - $135.11
$135.11

Dixon Sanitary Fittings Sanitary Polished Weld Lateral - 316 Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B28WA-R200P Dixon
Shape (Orientation): Y
Ends Configuration: 2in Weld End, 2in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • 3A sanitary finish ID and OD.
  • Finish: Polished
Part Number Tube OD Dimensions

Weight (Lbs.)
A B C D
B28WA-R100P 1" 6.000" 5.000" 0.065" 1.000" 0.5400
B28WA-R150P 1-1/2" 7.380" 6.190" 0.065" 1.500" 1.0985
B28WA-R200P 2" 8.750" 7.130" 0.065" 2.000" 1.5295
B28WA-R250P 2-1/2" 10.000" 8.500" 0.065" 2.500" 2.2405
B28WA-R300P 3" 10.750" 8.880" 0.065" 3.000" 2.8100
B28WA-R400P 4" 12.810" 9.920" 0.083" 4.000" 5.5000
B28WA-R600P 6" 18.000" 13.260" 0.109" 6.000" 14.0200
B28WA-R800P 8" - - - - -
