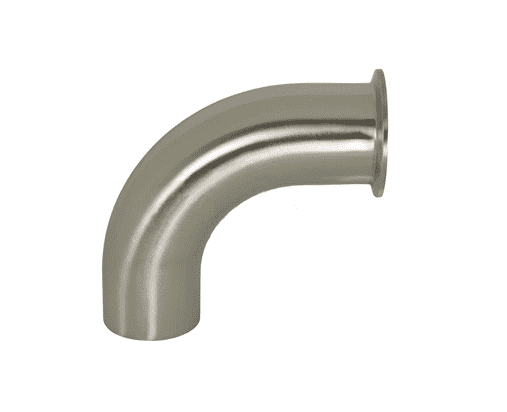

B2CM-R200 Dixon 316L Stainless Steel Sanitary Polished 90 deg. Clamp x Weld Elbow - 2" Tube OD

B2CM-R200 Dixon Valve 316L Stainless Steel Sanitary Polished 90 deg. Clamp x Weld Elbow - 2" Tube OD

Save $1.08 Save $1.08
$30.36
$30.36 - $30.36
$30.36
$29.28
$29.28 - $29.28
$29.28

Dixon Sanitary Fittings Polished Weld Elbow - Polished 90° Clamp x Weld Elbow - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B2CM-R200 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 2in Sanitary Clamp End, 2in Weld End
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • 3A sanitary finish ID and OD
Part Number Tube OD Dimensions

 Nominal Wall Weight (Lbs.)
A B R OD ID
B2CM-R50 1/2" - - - - - - 1.0000
B2CM-R75 3/4" - - - - - - 1.0000
B2CM-R100 1" 2.06" 2.56" 1.50" 1.00" 0.87" 0.065" 0.4900
B2CM-R150 1-1/2" 2.94" 3.44" 2.25" 1.50" 1.37" 0.065" 0.4700
B2CM-R200 2" 4.06" 4.56" 3.00" 2.00" 1.87" 0.065" 0.8700
B2CM-R250 2-1/2" 5.19" 5.69" 3.75" 2.50" 2.37" 0.065" 1.3500
B2CM-R300 3" 6.31" 6.81" 4.50" 3.00" 2.87" 0.065" 1.8500
B2CM-R400 4" 8.31" 8.94" 6.00" 4.00" 3.83" 0.083" 4.2100
B2CM-R600 6" - - - - - - 7.0000
B2CM-R800 8" - - - - - - -
