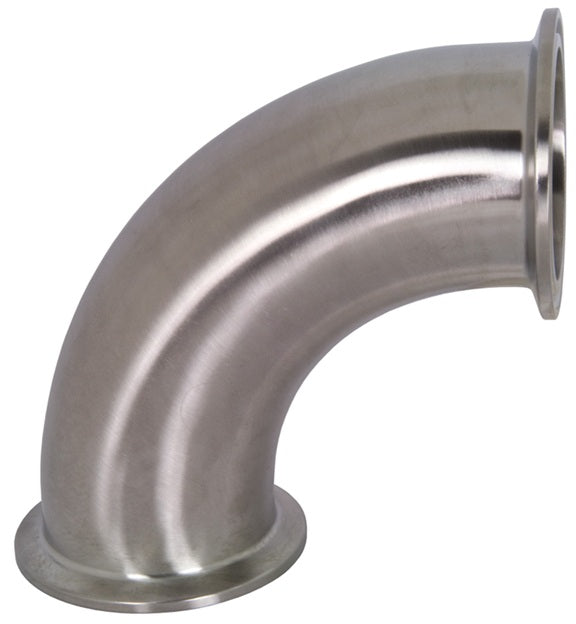

B2CMP-G100 Dixon Valve 304 Stainless Steel Sanitary 90 deg. Clamp Elbow - 1" Tube OD

B2CMP-G100 Dixon Valve 304 Stainless Steel Sanitary 90 deg. Clamp Elbow - 1" Tube OD

Save $6.23 Save $6.23
$22.55
$22.55 - $22.55
$22.55
$16.32
$16.32 - $16.32
$16.32

Dixon Sanitary Fittings Sanitary Clamp Elbow - 90 deg. Clamp Elbow - 304 Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B2CMP-G100 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 1in Sanitary Clamp End, 1in Sanitary Clamp End, Some Ends Match
Material(s): 304 Stainless Steel
Part Number Tube OD Dimensions Weight (Lbs.)
A B ID OD R
B2CMP-G100 1" 2.00" 2.00" 0.87" 1.00" 1.50" 0.4100
B2CMP-G150 1-1/2" 2.75" 2.75" 1.37" 1.50" 2.25" 0.4800
B2CMP-G200 2" 3.50" 3.50" 1.87" 2.00" 3.00" 0.7800
B2CMP-G250 2-1/2" 4.25" 4.25" 2.37" 2.50" 3.75" 1.1500
B2CMP-G300 3" 5.00" 5.00" 2.87" 3.00" 4.50" 1.6100
B2CMP-G400 4" 6.63" 6.63" 3.83" 4.00" 6.00" 3.4400
B2CMP-G600 6" 9.88" 9.88" 5.78" 6.00" 9.00" 9.6700
B2CMP-G800 8" - - - - - 10.0000
