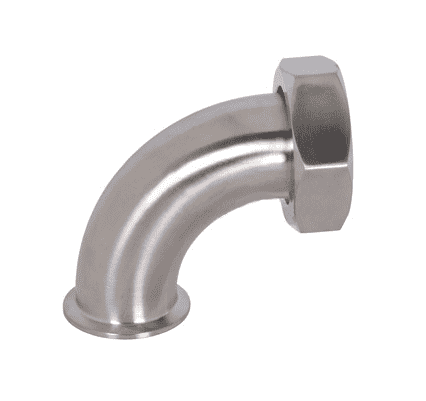

B2FMP-14-G300 Dixon 304 Stainless Steel Sanitary 90 deg. Clamp x Plain Bevel Seat with Hex Nut Elbow - 3" Tube OD

B2FMP-14-G300 Dixon Valve 304 Stainless Steel Sanitary 90 deg. Clamp x Plain Bevel Seat with Hex Nut Elbow - 3" Tube OD

Save $24.13 Save $24.13
$217.17
$217.17 - $217.17
$217.17
$193.04
$193.04 - $193.04
$193.04

Dixon Sanitary Fittings Sanitary Clamp Elbow - 90 deg. Clamp x Plain Bevel Seat with Hex Nut Elbow

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B2FMP-14-G300 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 3in Sanitary Clamp End, 3in Sanitary Clamp End, Some Ends Match
Material(s): 304 Stainless Steel
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions

A B R OD ID
- B2FMP-14-R100 1" 2.00" 2.22" 1.50" 1.00" 0.87"
B2FMP-14-G150 - 1-1/2" 2.75" 2.97" 2.25" 1.50" 1.37"
B2FMP-14-G200 - 2" 3.50" 3.75" 3.00" 2.00" 2.87"
B2FMP-14-G250 - 2-1/2" 4.25" 4.63" 3.75" 2.50" 2.37"
B2FMP-14-G300 B2FMP-14-R300 3" 5.00" 5.41" 4.50" 3.00" 2.87"
B2FMP-14-G400 - 4" 6.63" 7.03" 6.00" 4.00" 3.83"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
