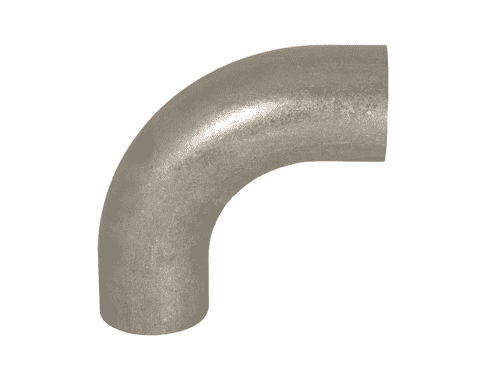

B2S-G400U Dixon 304 Stainless Steel Sanitary Unpolished 90 deg. Weld Elbow with Tangent - 4" Tube OD

B2S-G400U Dixon Valve 304 Stainless Steel Sanitary Unpolished 90 deg. Weld Elbow with Tangent - 4" Tube OD

Save $35.45 Save $35.45
$88.62
$88.62 - $88.62
$88.62
$53.17
$53.17 - $53.17
$53.17

Dixon Sanitary Weld Unpolished Elbows - Unpolished 90 deg. Weld Elbows with Tangents - 304 Stainless Steel
Specifications for Variant SKU: B2S-G400U Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 4in Weld End, 4in Weld End, Some Ends Match
Material(s): 304 Stainless Steel
Special Properties: Unpolished
Features:
  • N/A
Part Number Tube OD Dimensions
Nominal Wall Weight (Lbs.)
A R
B2S-G100U 1" 2.062" 1.500" .065" 0.2000
B2S-G150U 1-1/2" 2.937" 2.250" .065" 0.4000
B2S-G200U 2" 4.062" 3.000" .065" 0.7800
B2S-G250U 2-1/2" 5.187" 3.750" .065" 1.1705
B2S-G300U 3" 6.312" 4.500" .065" 1.8200
B2S-G400U 4" 8.312" 6.000" .083" 3.8200
