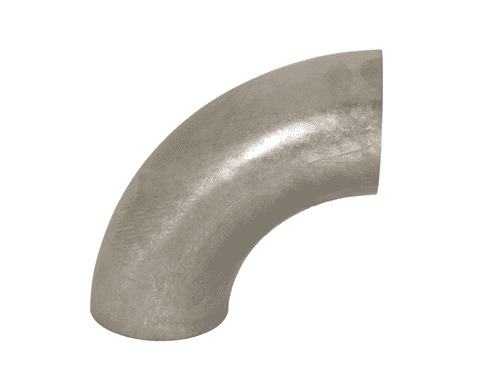

B2WCL-G300U Dixon 304 Stainless Steel Sanitary Unpolished 90 deg. Weld Elbow - 3" Tube OD

B2WCL-G300U Dixon Valve 304 Stainless Steel Sanitary Unpolished 90 deg. Weld Elbow - 3" Tube OD

Save $0.28 Save $0.28
$20.55
$20.55 - $20.55
$20.55
$20.27
$20.27 - $20.27
$20.27

Dixon Sanitary Fittings Sanitary Weld Unpolished Elbow - Unpolished 90 deg. Weld Elbow - 304 Stainless Steel
Specifications for Variant SKU: B2WCL-G300U Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 3in Weld End, 3in Weld End, Some Ends Match
Material(s): 304 Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions

Nominal Wall Weight (Lbs.)
A B OD ID
B2WCL-G100U 1" 1.50" 1.50" 1.00" 0.87" 0.065" 0.1400
B2WCL-G150U 1-1/2" 2.25" 2.25" 1.50" 1.37" 0.065" 0.3000
B2WCL-G200U 2" 3.00" 3.00" 2.00" 1.87" 0.065" 0.5500
B2WCL-G250U 2-1/2" 3.75" 3.75" 2.50" 2.37" 0.065" 0.8090
B2WCL-G300U 3" 4.50" 4.50" 3.00" 2.87" 0.065" 1.2300
B2WCL-G400U 4" 6.00" 6.00" 4.00" 3.83" 0.083" 2.8000
B2WCL-G600U 6" 9.00" 9.00" 6.00" 5.78" 0.109" 8.8000
B2WCL-G800U 8" 12.00" 12.00" 8.00" 7.78" 0.109" 15.4000
B2WCL-G1000U 10" 15.00" 15.00" 10.00" 9.76" 0.109" 11.0000
B2WCL-G1200U 12" 18.00" 18.00" 12.00" 11.76" 0.120" 14.0000
