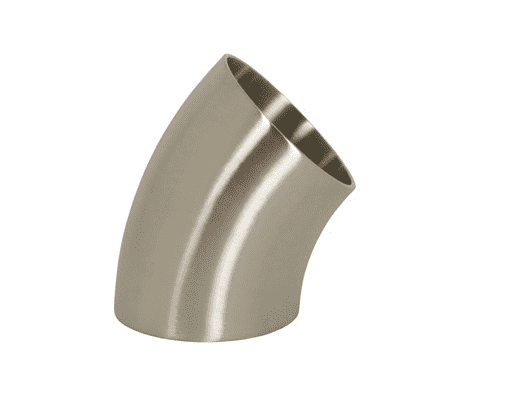

B2WK-G100P Dixon 304 Stainless Steel Sanitary Polished 45 deg. Weld Elbow - 1" Tube OD

B2WK-G100P Dixon Valve 304 Stainless Steel Sanitary Polished 45 deg. Weld Elbow - 1" Tube OD

Save $3.43 Save $3.43
$8.58
$8.58 - $8.58
$8.58
$5.15
$5.15 - $5.15
$5.15

Dixon Sanitary Fittings Sanitary Polished Weld Elbow - Polished 45° Weld Elbow - 304 Stainless Steel

3A sanitary finish ID and OD.

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B2WK-G100P Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 1in Weld End, 1in Weld End, Some Ends Match
Material(s): 304 Stainless Steel
Special Properties: Polished
Features:
  • Finish: Polished
Part Number Tube OD Dimensions

Nominal Wall Weight (Lbs.)
A R OD ID
B2WK-G100P 1" 0.62" 1.50" 1.00" 0.87" 0.065" 0.0660
B2WK-G150P 1-1/2" 0.94" 2.25" 1.50" 1.37" 0.065" 0.1525
B2WK-G200P 2" 1.25" 3.00" 2.00" 1.87" 0.065" 0.2400
B2WK-G250P 2-1/2" 1.56" 3.75" 2.50" 2.37" 0.065" 0.4200
B2WK-G300P 3" 1.87" 4.50" 3.00" 2.87" 0.065" 0.8900
B2WK-G400P 4" 2.50" 6.00" 4.00" 3.83" 0.083" 1.3300
B2WK-G600P 6" 3.75" 9.00" 6.00" 5.78" 0.109" 4.1550
B2WK-G800P 8" 4.97" 12.00" 8.00" 7.78" 0.120" 9.0500
B2WK-G1000P 10" 6.25" 15.00" 10.00" 9.76" 0.109" 11.0000
B2WK-G1200P 12" 7.50" 18.00" 12.00" 11.76" 0.120" 14.0000
