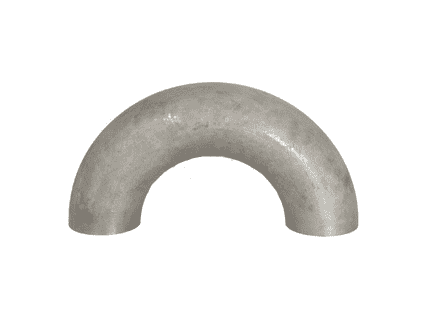

B2WUL-R200U Dixon 316L Stainless Steel Sanitary Unpolished Weld 180 deg. Return Bend - 2" Tube OD

B2WUL-R200U Dixon Valve 316L Stainless Steel Sanitary Unpolished Weld 180 deg. Return Bend - 2" Tube OD

Save $1.86 Save $1.86
$60.85
$60.85 - $60.85
$60.85
$58.99
$58.99 - $58.99
$58.99

Dixon Sanitary Unpolished Weld 180 deg. Return Bends - 316L Stainless Steel
Specifications for Variant SKU: B2WUL-R200U Dixon
Shape (Orientation): 180 Degree
Ends Configuration: 2in Weld End, 2in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Unpolished
Features:
  • Bends are standard 1.5 x tube diameter.
Part Number Tube OD Dimensions
Nominal Wall Weight (Lbs.)
A B
B2WUL-R100U 1" 3.000" 2.000" .065" 2.0000
B2WUL-R150U 1-1/2" 4.500" 3.000" .065" 0.6050
B2WUL-R200U 2" 6.000" 4.000" .065" 1.0150
B2WUL-R300U 3" 9.000" 6.000" .065" 2.4350
B2WUL-R400U 4" 12.000" 8.000" .083" 5.3000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
