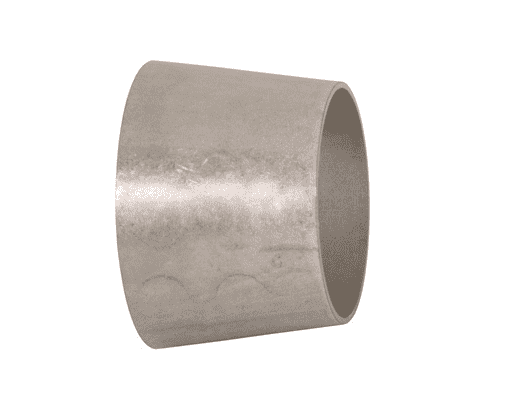

B31W-G12001000U Dixon Valve 304 Stainless Steel Sanitary Unpolished Concentric Weld Reducer - 12" x 10" Tube OD

B31W-G12001000U Dixon Valve 304 Stainless Steel Sanitary Unpolished Concentric Weld Reducer - 12" x 10" Tube OD

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings Sanitary Unpolished Concentric Weld Reducer - 304 Stainless Steel
Specifications for Variant SKU: B31W-G12001000U Dixon
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions

 Weight(Lbs.)
A B C D E
B31W-G10050U 1" x 1/2" 2.00" 0.50" 1.00" 0.07" 0.07" 0.0700
B31W-G150100U 1-1/2" x 1" 2.00" 1.00" 1.50" 0.07" 0.07" 0.1385
B31W-G200100U 2" x 1" 4.00" 1.00" 2.00" 0.07" 0.07" 0.3315
B31W-G200150U 2" x 1-1/2" 2.00" 1.50" 2.00" 0.07" 0.07" 0.2300
B31W-G250150U 2-1/2" x 1-1/2" 4.00" 1.50" 2.50" 0.07" 0.07" 0.4590
B31W-G250200U 2-1/2" x 2" 2.00" 2.00" 2.50" 0.07" 0.07" 0.2565
B31W-G300100U 3" x 1" 8.00" 1.00" 3.00" 0.07" 0.07" 0.7300
B31W-G300150U 3" x 1-1/2" 6.00" 1.50" 3.00" 0.07" 0.07" 0.8020
B31W-G300200U 3" x 2" 4.00" 2.00" 3.00" 0.07" 0.07" 0.6600
B31W-G300250U 3" x 2-1/2" 2.00" 2.50" 3.00" 0.07" 0.07" 0.3500
B31W-G400150U 4" x 1-1/2" 10.00" 1.50" 4.00" 0.08" 0.07" 1.8450
B31W-G400200U 4" x 2" 8.00" 2.00" 4.00" 0.08" 0.07" 1.5710
B31W-G400250U 4" x 2-1/2" 6.00" 2.50" 4.00" 0.08" 0.07" 1.2550
B31W-G400300U 4" x 3" 4.00" 3.00" 4.00" 0.08" 0.07" 1.1300
B31W-G600200U 6" x 2" 5.50" 2.00" 6.00" 0.11" 0.07" 8.0000
B31W-G600300U 6" x 3" 5.50" 3.00" 6.00" 0.11" 0.07" 2.2200
B31W-G600400U 6" x 4" 5.50" 4.00" 6.00" 0.11" 0.08" 2.7300
B31W-G800400U 8" x 4" 6.00" 4.00" 8.00" 0.11" 0.08" 3.3600
B31W-G800600U 8" x 6" 6.00" 6.00" 8.00" 0.11" 0.11" 4.8000
B31W-G1000600U 10" x 6" - - - - - 12.0000
B31W-G1000800U 10" x 8" - - - - - 6.9500
B31W-G1200800U 12" x 8" - - - - - 7.5850
B31W-G12001000U 12" x 10" - - - - - 12.0000
