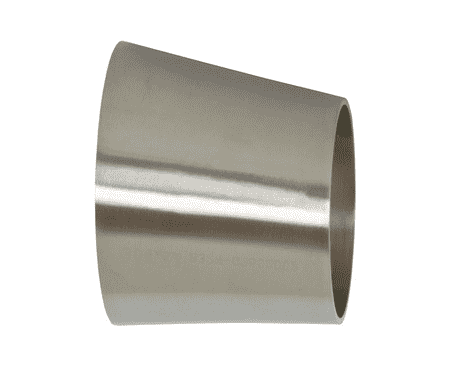

B32W-R20075P Dixon Valve 316L Stainless Steel Sanitary Polished Eccentric Weld Reducer - 2" x 3/4" Tube OD

B32W-R20075P Dixon Valve 316L Stainless Steel Sanitary Polished Eccentric Weld Reducer - 2" x 3/4" Tube OD

$58.95 - $58.95
$58.95
$59.11
$59.11 - $59.11
$59.11

Dixon Sanitary Fittings Sanitary Polished Eccentric Weld Reducers - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B32W-R20075P Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Weld End, 3/4in Weld End
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • 3A sanitary finish ID and OD.
Part Number Tube OD Dimensions

 Nominal Wall Weight (Lbs.)
A B C D E
B32W-R7550P 3/4" x 1/2" 1.00" 0.50" 0.75" 0.07" 0.07" 0.065" 0.0350
B32W-R10050P 1" x 1/2" 2.00" 0.50" 1.00" 0.07" 0.07" 0.065" 0.1000
B32W-R10075P 1" x 3/4" 1.00" 0.75" 1.00" 0.07" 0.07" 0.065" 0.1000
B32W-R15050P 1-1/2" x 1/2" 4.00" 0.50" 1.50" 0.07" 0.07" 0.065" 0.2400
B32W-R15075P 1-1/2" x 3/4" 3.00" 0.75" 1.50" 0.07" 0.07" 0.065" 0.1850
B32W-R150100P 1-1/2" x 1" 2.00" 1.00" 1.50" 0.07" 0.07" 0.065" 0.1590
B32W-R20050P 2" x 1/2" 6.00" 0.50" 2.00" 0.07" 0.07" 0.065" 0.4650
B32W-R20075P 2" x 3/4" 5.00" 0.75" 2.00" 0.07" 0.07" 0.065" 0.3900
B32W-R200100P 2" x 1" 4.00" 1.00" 2.00" 0.07" 0.07" 0.065" 0.3900
B32W-R200150P 2" x 1-1/2" 2.00" 1.50" 2.00" 0.07" 0.07" 0.065" 0.2400
B32W-R250150P 2-1/2" x 1-1/2" 4.00" 1.50" 2.50" 0.07" 0.07" 0.065" 0.6400
B32W-R250200P 2-1/2" x 2" 2.00" 2.00" 2.50" 0.07" 0.07" 0.065" 0.2700
B32W-R300100P 3" x 1" 8.00" 1.00" 3.00" 0.07" 0.07" 0.065" 1.0000
B32W-R300150P 3" x 1-1/2" 6.00" 1.50" 3.00" 0.07" 0.07" 0.065" 0.8700
B32W-R300200P 3" x 2" 4.00" 2.00" 3.00" 0.07" 0.07" 0.065" 0.6800
B32W-R300250P 3" x 2-1/2" 2.00" 2.50" 3.00" 0.07" 0.07" 0.065" 0.3300
B32W-R400150P 4" x 1-1/2" 10.00" 1.50" 4.00" 0.08" 0.07" 0.083" 1.8750
B32W-R400200P 4" x 2" 8.00" 2.00" 4.00" 0.08" 0.07" 0.083" 1.7300
B32W-R400250P 4" x 2-1/2" 6.00" 2.50" 4.00" 0.08" 0.07" 0.083" 1.4600
B32W-R400300P 4" x 3" 4.00" 3.00" 4.00" 0.08" 0.07" 0.083" 1.1900
B32W-R600200P 6" x 2" - - - - - - 6.0000
B32W-R600300P 6" x 3" 5.50" 3.00" 6.00" 0.11" 0.07" 0.109" 2.2450
B32W-R600400P 6" x 4" 5.50" 4.00" 6.00" 0.11" 0.08" 0.109" 2.6700
B32W-R800400P 8" x 4" 6.00" 4.00" 8.00" 0.11" 0.08" 0.109" 4.1400
B32W-R800600P 8" x 6" 6.00" 6.00" 8.00" 0.11" 0.11" 0.109" 10.0000
