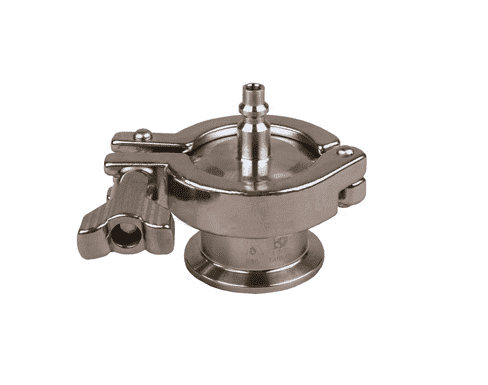

B45AB-R400 Dixon 4" 316L Stainless Steel Sanitary Air Blow Check Valve - Quick Connect Plug

B45AB-R400 Dixon Valve 4" 316L Stainless Steel Sanitary Air Blow Check Valve - Quick Connect Plug

Save $28.16 Save $28.16
$261.50
$261.50 - $261.50
$261.50
$233.34
$233.34 - $233.34
$233.34

Dixon Sanitary Valves
Air Blow Check Valve - Quick Connect Plug - 316L Stainless Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B45AB-R400 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Application:
  • The air blow check valve is designed to pressurize lines with air to clean out product or cleaning solutions. It is fail-safe because the simple air-to-open, spring-to-close mechanism prevents backflow. Can be used with a check valve.
Features:
  • EPDM seat and gasket.
  • Maximum operating temperature: 212 deg. F (100°C).
  • Maximum operating pressure: 145 PSI.
  • 3A authorized 58-00.
Note:
  • Filter disc (optional) must be used when installed for Accepted Practice 3A 604-05, Supplying Air under Pressure in Contact with Milk, Milk products and Product Contact.

When using air blow check valves with ball check valves, refer to the sizing chart below:

Ball Check Valve Size Air Blow Check Valve Size
1-1/2" 2"
2" 2-1/2"
2-1/2" 3"
3" 4"
Part Number Size Dimensions

 Seat Weight
(Lbs.)
A
B45AB-R100150 1" - 1-1/2" 1.98" EPDM 1.2700
B45AB-R200 2" 2.52" EPDM 1.3850
B45AB-R250 2-1/2" 3.05" EPDM 1.5400
B45AB-R300 3" 3.58" EPDM 1.6600
B45AB-R400 4" 4.68" EPDM 2.5500
Other Components:
B16AC-G150 1-1/2" Air Quick Coupler for B45AB Air Blow Check Valves
B45AB-PD Perforated Disc for B45AB Air Blow Check Valve
B45ABFD150 Air Blow Check Valve Filter Discs - 1 Micron - Pack of 50
