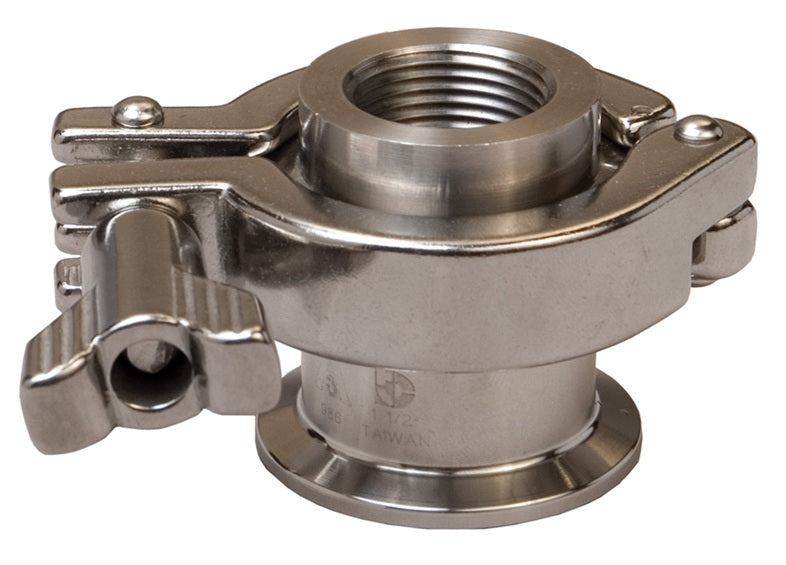

B45BC-R400 Dixon Valve 4" 316L Stainless Steel Sanitary Air Blow Check Valve - Female NPT

B45BC-R400 Dixon Valve 4" 316L Stainless Steel Sanitary Air Blow Check Valve - Female NPT

Save $33.94 Save $33.94
$305.65
$305.65 - $305.65
$305.65
$271.71
$271.71 - $271.71
$271.71

Dixon Sanitary Valves
Air Blow Check Valves - Female NPT - 316L Stainless Steel

The air blow check valve is designed to pressurize lines with air to clean out product or cleaning solutions. It is fail-safe because the simple air-to-open, spring-to-close mechanism prevents backflow. Can be used with a check valve.
Specifications for Variant SKU: B45BC-R400 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • 3A authorized 58-00
  • EPDM stem seat and gasket
Note:
  • Filter disc (optional) must be used when installed for Accepted Practice 3A 604-05, Supplying Air under Pressure in Contact with Milk, Milk products and Product Contact.
Part Number Size Dimensions
A B C
B45BC-R100150 1" - 1-1/2" 1.984" 1.30" 0.6"
B45BC-R200 2" 2.516" 1.30" 0.6"
B45BC-R20025 2" - 1/4" - - -
B45BC-R250 2-1/2" 3.047" 1.30" 0.6"
B45BC-R25025 2-1/2" - 1/4" - - -
B45BC-R300 3" 3.579" 1.30" 0.6"
B45BC-R30075 3" - 3/4 - - -
B45BC-R400 4" 4.682" 1.30" 0.6"
Other Components:
B45AB-RK EPDM Repair Kit for Air Blow Check Valves
