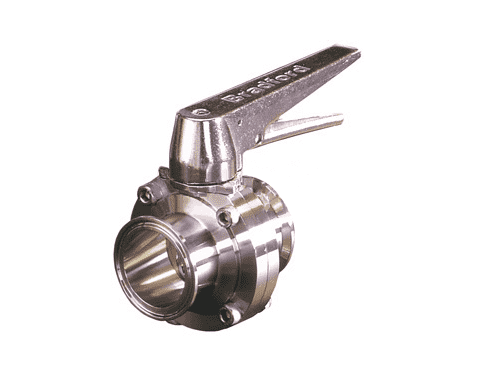

B5101V100CC-C Dixon Valve 1" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Trigger Handle and FKM Seats

$0.00

Dixon Sanitary Fittings Clamp End Butterfly Valve with Trigger Handle - [C] - 316L Stainless Steel with FKM Seats

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B5101V100CC-C Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • 100% hydraulic tested / 100% inspected.
  • Field serviceable (no special tools required).
  • Vacuum rating: 0.4 inches Hg at 68 deg. F.
  • Temperature range: 32°F to 200°F (0°C to 93°C).
  • All wetted surfaces are sanitary finished to < 32Ra.
Notes:
  • Pressure rating (PSI), Flow Coefficient (CV) and Break Torque (in. lbs.) information supplied is based on water media at 68°F / 20°C
  • Handle is not assembled when shipped.
  • Not for use with bolted clamps.
Part Number Size Dimensions

Break Torque (in-lbs.) PSI @ 68 deg. F Weight (Lbs.)
A B C D E F G
B5101V050CC-C 1/2" 6.6" 3.0" 1.7" 0.9" 3.5" .37" 3.1" 70 140 5.2900
B5101V075CC-C 3/4" 6.6" 3.0" 1.7" 0.9" 3.5" .62" 3.1" 70 140 5.7500
B5101V100CC-C 1" 6.6" 3.0" 1.7" 0.9" 3.5" 0.9" 3.1" 70 140 3.8800
B5101V150CC-C 1-1/2" 6.6" 3.0" 1.7" 0.9" 3.5" 1.4" 3.1" 125 140 4.2500
B5101V200CC-C 2" 6.6" 3.5" 1.7" 0.9" 3.8" 1.9" 3.9" 175 140 5.1900
B5107V250CC 2-1/2" 6.6" 3.7" 1.7" 0.9" 3.8" 2.4" 4.6" 220 110 5.7350
B5101V300CC-C 3" 6.6" 3.9" 1.7" 1.2" 4.1" 2.9" 5.2" 310 110 9.1700
B5101V400CC-C 4" 6.6" 4.8" 1.7" 1.2" 4.8" 3.8" 6.7" 450 85 14.0300
