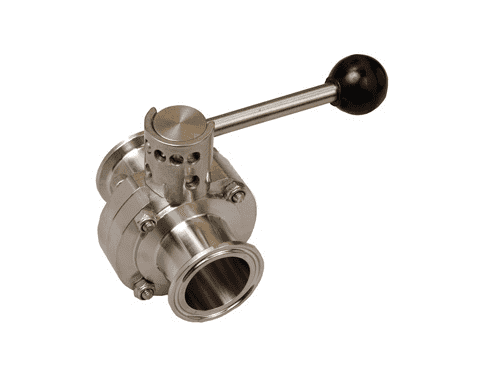

B5101V400CC-A Dixon 4" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Pull Handle and FKM Seats

B5101V400CC-A Dixon Valve 4" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Pull Handle and FKM Seats

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings Clamp End Butterfly Valve with Pull Handle - [A] - 316L Stainless Steel with FKM Seats
Specifications for Variant SKU: B5101V400CC-A Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • Low resistance to flow.
  • Bi-directions flow.
  • Gentle to media.
  • Suitable for low and medium viscosity fluids.
  • Can be serviced in the field.
  • Self-draining.
  • 100% hydraulic tested / 100% inspected.
  • Vacuum rating: 0.4 inches Hg at 68 deg. F.
  • Temperature range: 32°F to 200°F (0°C to 93°C).
  • All wetted surfaces are sanitary finished to < 32Ra.
Notes:
  • Pressure rating (PSI), Flow Coefficient (CV) and Break Torque (in. lbs.) information supplied is based on water media at 68°F / 20°C
  • Handle is not assembled when shipped.
  • Not for use with bolted clamps.
Part Number Size Dimensions

 Break Torque (in-lbs.) PSI @ 68 deg. F Weight (Lbs.)
A B C D E F G
B5101V100CC-A 1" 4.4" 2.8" 1.4" 0.9" 3.5" 0.9" 3.1" 70 140 2.8950
B5101V400CC-A 4" 6.2" 4.5" 1.3" 1.2" 4.8" 3.8" 6.7" 450 85 13.2950
