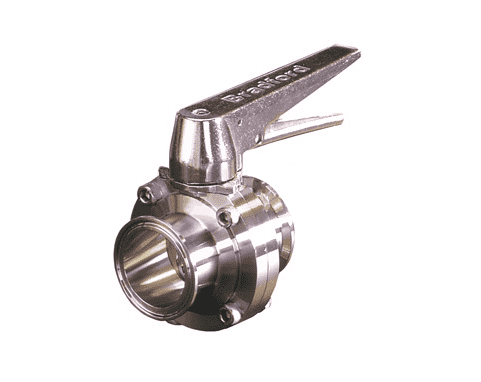

B5101V400CC-C Dixon 4" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Trigger Handle and FKM Seats

B5101V400CC-C Dixon Valve 4" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Trigger Handle and FKM Seats

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings Clamp End Butterfly Valve with Trigger Handle - [C] - 316L Stainless Steel with FKM Seats
Specifications for Variant SKU: B5101V400CC-C Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • 100% hydraulic tested / 100% inspected.
  • Field serviceable (no special tools required).
  • Vacuum rating: 0.4 inches Hg at 68 deg. F.
  • Temperature range: 32°F to 200°F (0°C to 93°C).
  • All wetted surfaces are sanitary finished to < 32Ra.
Notes:
  • Pressure rating (PSI), Flow Coefficient (CV) and Break Torque (in. lbs.) information supplied is based on water media at 68°F / 20°C
  • Handle is not assembled when shipped.
  • Not for use with bolted clamps.
Part Number Size Dimensions

 Break Torque (in-lbs.) PSI @ 68 deg. F Weight (Lbs.)
A B C D E F G
B5101V100CC-C 1" 6.6" 3.0" 1.7" 0.9" 3.5" 0.9" 3.1" 70 140 3.8800
B5101V400CC-C 4" 6.6" 4.8" 1.7" 1.2" 4.8" 3.8" 6.7" 450 85 14.0300
