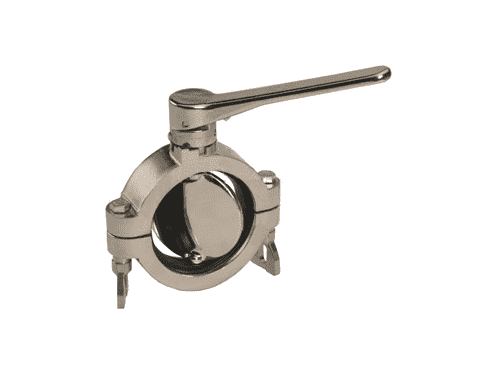

B5102S200-A Dixon 2" 316L Stainless Steel Sanitary Clamp Butterfly Valve with Silicone Seats

B5102S200-A Dixon Valve 2" 316L Stainless Steel Sanitary Clamp Butterfly Valve with Silicone Seats

Save $107.17 Save $107.17
$267.92
$267.92 - $267.92
$267.92
$160.75
$160.75 - $160.75
$160.75



Dixon Sanitary Valves - Clamp Butterfly Valves - 316L Stainless Steel with Silicone Seats
Specifications for Variant SKU: B5102S200-A Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Sanitary Clamp End, 2in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): Silicone
Features:
  • 100% tested / 100% inspected.
  • Field serviceable (no special tools required).
  • Minimal line pressure 0.4 inches Hg vacuum @ 68 deg. F.
  • 3 position reversible handle.
  • Can be modified for lockout/tagout.
  • Operating temperature 15 deg. F - 200 deg. F.
  • PTFE valve disc bushings decrease friction and increase cycle life.
  • The grooved clamp housing connects directly to the corresponding sanitary clamp size.
  • Valve is only 1-3/8" wide on all sizes.
  • Valve uses only 3/4" of line space.
  • The grooved clamp housing connects directly to any sanitary clamp style fitting.
  • Easy assembly requires a hex key for the handle and wing nuts to secure and seal the housing onto lines.
Part Number Size Dimensions Break Torque
(in-lbs.)		 PSI @
68 deg. F		 Assembly Torque:
(in-lbs.)		 Flow Coefficient:
(CV)		 Weight
(Lbs.)
A B C D E F
B5102S100-A 1" 5.6" 2.8" 1.3" 1.3" 3.6" 5.6" 125 140 36 23 2.3700
B5102S150-A 1-1/2" 5.6" 2.8" 1.3" 1.3" 3.6" 5.6" 185 140 36 80 2.4100
B5102S200-A 2" 5.6 3" 1.3" 1.3" 4.1" 6.1" 200 120 21.6 230 2.8000
B5102S250-A 2-1/2" 5.6" 3.3" 1.3" 1.3" 4.6" 6.6" 260 120 21.6 264 3.0850
B5102S300-A 3" 5.6" 3.6" 1.3" 1.3" 5.3" 7.1" 350 100 28.8 372 3.7000
B5102S400-A 4" 5.6" 4.1" 1.3" 1.3" 6.4" 8.2" 495 70 43.2 800 4.7050
