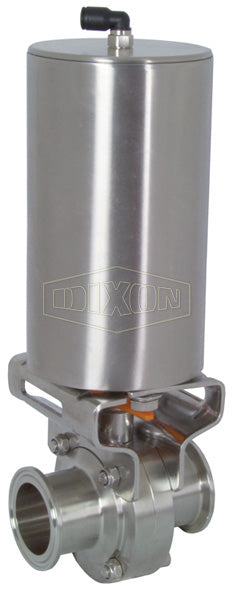

B5107E100CCF Dixon Valve 1" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Vertical Canister Actuation - Normally Open - EPDM Seats

B5107E100CCF Dixon Valve 1" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Vertical Canister Actuation - Normally Open - EPDM Seats

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
Clamp End Butterfly Valve with Vertical Canister Actuation - Normally Open - EPDM Seats
Specifications for Variant SKU: B5107E100CCF Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • Shipped fully assembled, including pneumatic actuator and mounting bracket assembly.
  • Vertical spring return pneumatic canister style actuator.
  • EPDM Elastomers.
  • Not for use with bolted clamps.
Part Number Clamp Size
B5107E075CCF 3/4"
B5107E100CCF 1"
B5107E150CCF 1-1/2"
B5107E200CCF 2"
B5107E300CCF 3"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
