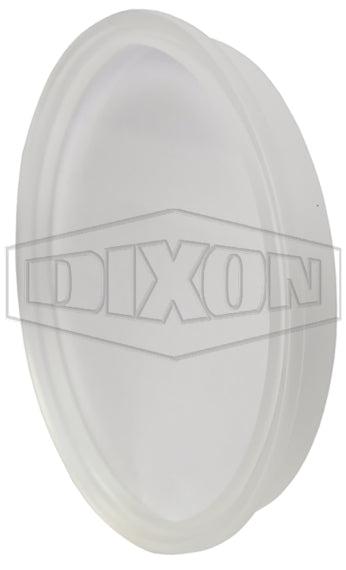

B5416MP-A300 by Dixon Valve | Sanitary Sight Glass End Cap | Tube OD 3" | Acrylic Plastic

Name: B5416MP-A300 by Dixon Valve | Sanitary Sight Glass End Cap | Tube OD 3" | Acrylic Plastic
Brand: Dixon
SKU: B5416MP-A300 Dixon
Price: 84.6 USD
Availability: InStock

Save $56.40

$141.00

$141.00 - $141.00

$141.00

$84.60

$84.60 - $84.60

$84.60

Dixon Valve - Sanitary Sight Glass | Acrylic Sight Glass End Cap

For use on any line with a clamp and gasket.

Specifications for Variant SKU: B5416MP-A300 Dixon

Specifications:
Maximum temperature: 150°F (66°C) Maximum operating pressure: 100 PSI

Part Number	Tube OD	Dimensions
Part Number	Tube OD	A	B	C	D
B5416MP-A100150	1" - 1-1/2"	1.98"	1.72"	1.68"	0.50"
B5416MP-A200	2"	2.52"	2.22"	2.19"	0.50"
B5416MP-A250	2-1/2"	3.05"	2.78"	2.71"	0.50"
B5416MP-A300	3"	3.58"	3.28"	3.22"	0.50"
B5416MP-A400	4"	4.68"	4.34"	4.26"	0.50"
B5416MP-A600	6"	6.57"	6.18"	6.13"	0.50"
