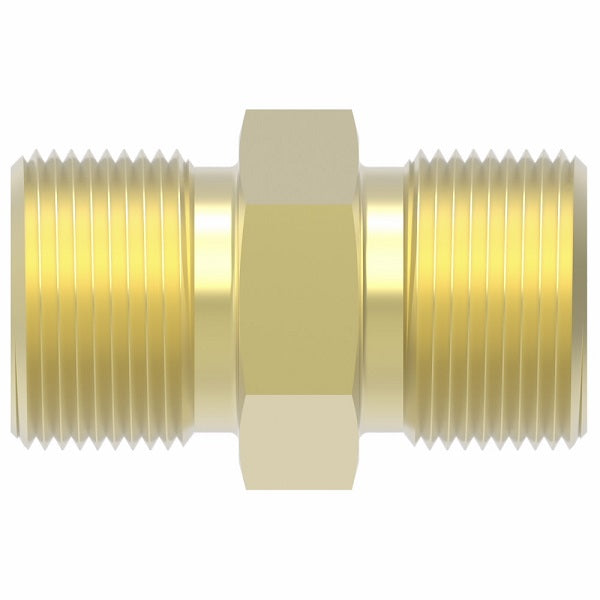

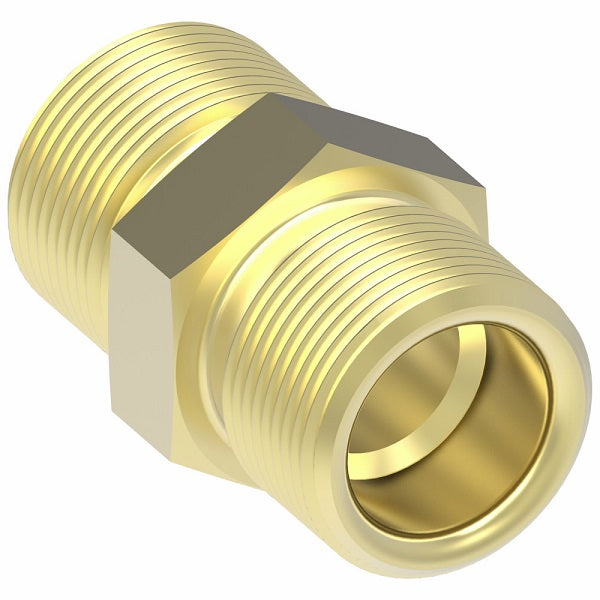

B62X5 by Danfoss | Compression Fitting | Union (Body Only) | 5/16" Tube OD | Brass
B62X5 by Danfoss | Compression Fitting | Union (Body Only) | 5/16" Tube OD | Brass
B62X5 by Danfoss | Compression Fitting | Union (Body Only) | 5/16" Tube OD | Brass

B62X5 by Danfoss | Compression Fitting | Union (Body Only) | 5/16" Tube OD | Brass

$3.56 - $3.56
$3.56
$3.56 - $3.56
$3.56

Aeroquip® by Danfoss
Compression Fitting - Union
Compression End x Compression End
Straight
Specifications for Variant SKU: B62X5 Danfoss
Shape (Orientation): Straight
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060101BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number 		Brass
Body Only
Part Number 		Tube O.D. Hex
C		 L Thread Size
62X2 B62X2 1/8" 5/16" 0.094" 0.66"
62X3 B62X3 3/16" 3/8" 0.125" 0.76"
62X4 B62X4 1/4" 7/16" 0.188" 0.79"
62X5 B62X5 5/16" 1/2" 0.250" 0.88"
62X6 B62X6 3/8" 9/16" 0.312" 0.97"
62X8 B62X8 1/2" 11/16" 0.406" 1.10"
62X8 B62X10 5/8" 13/16" 0.500" 1.25"
