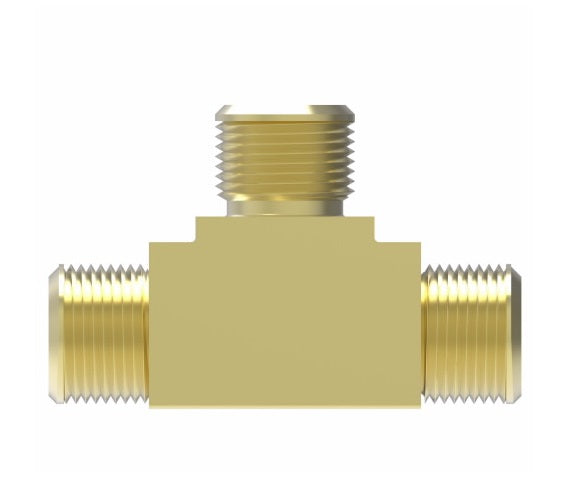

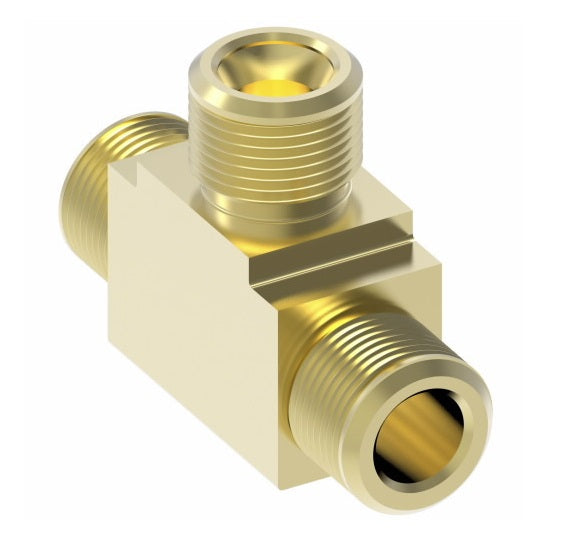

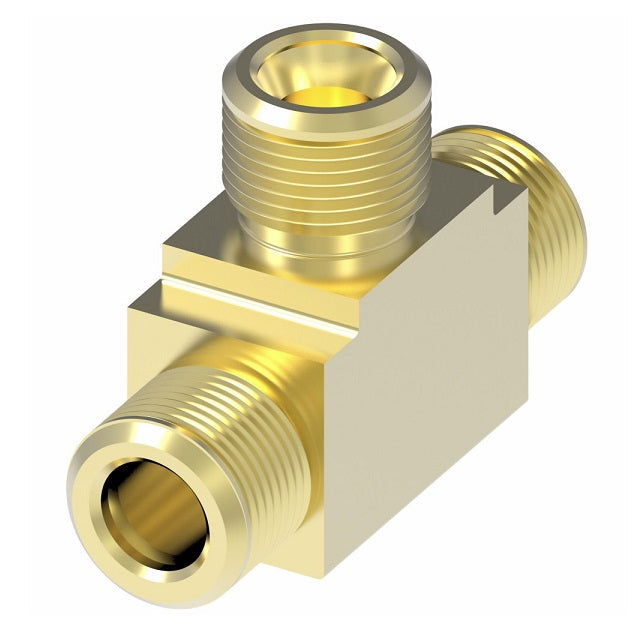

B64X8 by Danfoss | Compression Fitting | Union Tee (Body Only) | 1/2" Tube OD | Brass
B64X8 by Danfoss | Compression Fitting | Union Tee (Body Only) | 1/2" Tube OD | Brass
B64X8 by Danfoss | Compression Fitting | Union Tee (Body Only) | 1/2" Tube OD | Brass
B64X8 by Danfoss | Compression Fitting | Union Tee (Body Only) | 1/2" Tube OD | Brass

B64X8 by Danfoss | Compression Fitting | Union Tee (Body Only) | 1/2" Tube OD | Brass

$17.22 - $17.22
$17.22
$17.22 - $17.22
$17.22

Aeroquip® by Danfoss
Compression Fitting - Union Tee
Compression End x Compression End x Compression End
Specifications for Variant SKU: B64X8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Compression, 1/2in Tube Compression, 1/2in Tube Compression, Some Ends Match
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060401BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number		 Brass
Body Only
Part Number 		Tube O.D. D M
64X3 B64X3 3/16" 0.125" 0.60"
64X4 B64X4 1/4" 0.188" 0.62"
64X5 B64X5 5/16" 0.250" 0.67"
64X6 B64X6 3/8" 0.312" 0.73"
64X8 B64X8 1/2" 0.406" 0.94"
