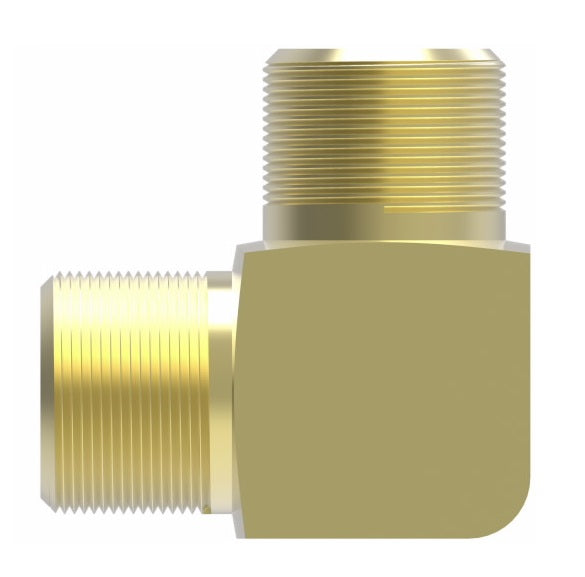

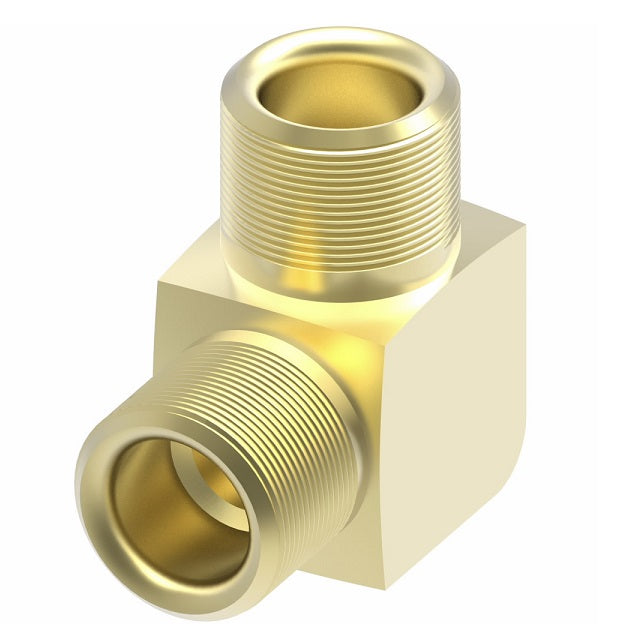

B65X4 by Danfoss | Compression Fitting | Union 90° Elbow (Body Only) | 1/4" Tube OD | Brass
B65X4 by Danfoss | Compression Fitting | Union 90° Elbow (Body Only) | 1/4" Tube OD | Brass
B65X4 by Danfoss | Compression Fitting | Union 90° Elbow (Body Only) | 1/4" Tube OD | Brass

B65X4 by Danfoss | Compression Fitting | Union 90° Elbow (Body Only) | 1/4" Tube OD | Brass

$6.60 - $6.60
$6.60
$6.60 - $6.60
$6.60

Aeroquip® by Danfoss
Compression Fitting - Union
Compression End x Compression End
90° Elbow
Specifications for Variant SKU: B65X4 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Tube Compression, 1/4in Tube Compression, Some Ends Match
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060201BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number		 Brass
Body Only
Part Number 		Tube O.D. D M
65X4 B65X4 1/4" 0.188" 0.60"
65X5 B65X5 5/16" 0.250" 0.62"
65X6 B65X6 3/8" 0.312" 0.75"
65X8 B65X8 1/2" 0.406" 0.94"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
