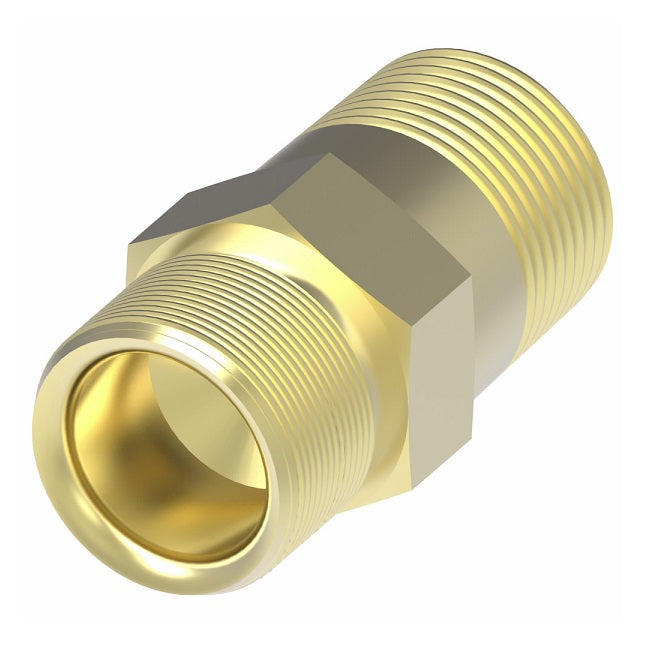

B68X3 by Danfoss | Compression Fitting | Male Connector (Body Only) | 3/16" Tube OD x 1/8" Male NPTF | Brass
B68X3 by Danfoss | Compression Fitting | Male Connector (Body Only) | 3/16" Tube OD x 1/8" Male NPTF | Brass
B68X3 by Danfoss | Compression Fitting | Male Connector (Body Only) | 3/16" Tube OD x 1/8" Male NPTF | Brass

B68X3 by Danfoss | Compression Fitting | Male Connector (Body Only) | 3/16" Tube OD x 1/8" Male NPTF | Brass

$1.80 - $1.80
$1.80
$1.80 - $1.80
$1.80

Aeroquip® by Danfoss
Compression Fitting - Male Connector
Compression End x Male NPTF
Straight
Specifications for Variant SKU: B68X3 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/16in Tube Compression, 1/8in Male NPTF
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060102BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number		 Brass
with Sealant
Part Number		 Brass
Body Only
Part Number 		Tube O.D. Male Pipe Thread Hex
C		 D D1 Opt. L
68X2X1 - B68X2X1 1/8" 1/16" 3/8" 0.094" - 0.78"
68X2 - B68X2 1/8" 1/8" 7/16" 0.094" 0.094" 0.78"
68X3 - B68X3 3/16" 1/8" 7/16" 0.125" 0.125" 0.84"
68X4 - B68X4 1/4" 1/8" 7/16" 0.188" 0.188" 0.88"
68X4X4 - B68X4X4 1/4" 1/4" 9/16" 0.188" 0.312" 1.06"
68X5 - B68X5 5/16" 1/8" 1/2" 0.250" 0.234" 0.91"
68X5X4 - B68X5X4 5/16" 1/4" 9/16" 0.250" 0.250" 1.09"
68X6X2 - B68X6X2 3/8" 1/8" 9/16" 0.312" 0.250" 0.97"
68X6 68X6Z B68X6 3/8" 1/4" 9/16" 0.312" 0.312" 1.17"
68X6X6 - B68X6X6 3/8" 3/8" 11/16" 0.312" 0.312" 1.16"
68X6X8 - B68X6X8 3/8" 1/2" 7/8" 0.312" 0.562" 1.34"
68X8X4 - B68X8X4 1/2" 1/4" 11/16" 0.406" 0.281" 1.22"
68X8 - B68X8 1/2" 3/8" 11/16" 0.406" 0.406" 1.22"
68X8X8 - B68X8X8 1/2" 1/2" 7/8" 0.406" 0.406" 1.41"
68X10 - B68X10 5/8" 1/2" 7/8" 0.500" 0.500" 1.50"
