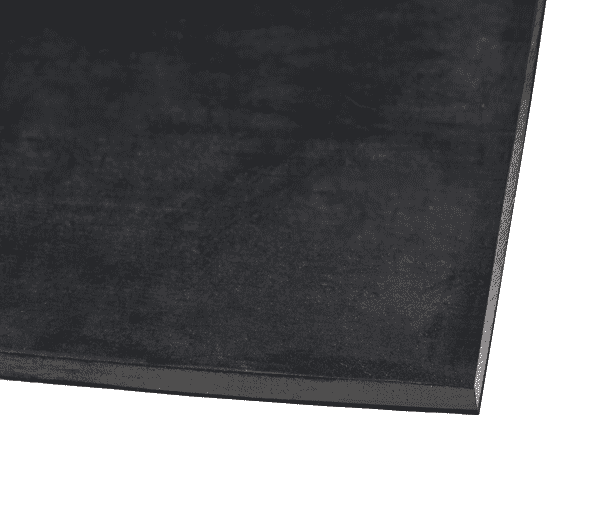

B70-04x48x100 by Kuriyama | Commercial Grade Nitrile Sheet Rubber | 60 Duro Hardness | Shore Durometer A | Black | 1/4" x 48" | 100ft Roll

Save $679.44

$2,378.04

$2,378.04 - $2,378.04

$2,378.04

$1,698.60

$1,698.60 - $1,698.60

$1,698.60

Kuriyama Industrial Sheet Rubber - Commercial Grade Black Nitrile Sheet Rubber

Package Quantity: 100 FT

Specifications for Variant SKU: B70-04X48X100 Kuriyama \| 100 \|

SPECIFICATIONS

Features & Properties:
Styles:	60 Duro hardness (Shore Durometer A)	Polymer:	Nitrile-Butadiene
Common Name:	Nitrile, Buna-N	ISO/ASTM Designation:	NBR
Excellent resistance to petroleum-based fluids. Good physical properties. (Properties shown based on Rubber Manufacturers Association Sheet Rubber Handbook, second edition) Acid Resistance Alkali Resistance Compression Set Resilience Excellent resistance to petroleum-based fluids Gas Permeability Resistance Gas Resistance Good physical properties Heat Aging Abrasion Resistance Oil Resistance Tear Flame Resistance Weathering Ozone Resistance

Part Number	Gauge x Width in.	ASTM Specification(SI units)	Temp.Range	Durometer	Tensile Strength(PSI)	Elongation (%)	Finish	Avg. Length(Linear Ft. /Roll)	Weight(Lbs/Roll)
B60-01x36x67	1/32" x 36"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	67ft	56 lbs
B60-01x36x67	1/32" x 36"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	67ft	56 lbs
B60-02x36x67	1/16" x 36"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	67ft	100 lbs
B60-02x36x100	1/16" x 36"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	100ft	149 lbs
B60-03x36x67	3/32" x 36"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	67ft	150 lbs
B60-04x36x67	1/8" x 36"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	67ft	200 lbs
B60-04x36x100	1/8" x 36"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	100ft	299 lbs
B60-06x36x36	3/16" x 36"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	36ft	161 lbs
B60-06x36x50	3/16" x 36"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	50ft	224 lbs
B60-06x36x50	1/4" x 36"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	36ft	215 lbs
B60-08x36x50	1/4" x 36"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	50ft	299 lbs
B60-02x48x67	1/16" x 48"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	67ft	113 lbs
B60-02x48x100	1/16" x 48"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	48ft	199 lbs
B60-04x48x50	1/8" x 48"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	50ft	198 lbs
B60-04x48x67	1/8" x 48"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	67ft	266 lbs
B60-06x48x36	3/16" x 48"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	36ft	215 lbs
B60-06x48x50	3/16" x 48"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	50ft	298 lbs
B60-08x48x36	1/8" x 48"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	36ft	287 lbs
B70-04x48x50	1/8" x 48"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	50ft	198 lbs
B70-04x48x100	1/8" x 48"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	100ft	376 lbs
B70-08x48x50	1/4" x 48"	D 2000 M5BG 607	-30 deg. F to +200 deg. F	55 - 65	1000 PSI	350%	Plate	50ft	398 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
