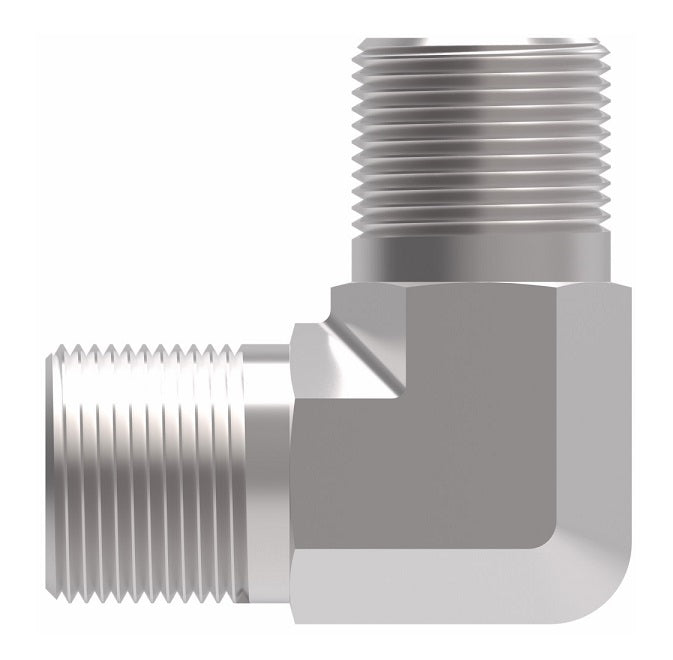

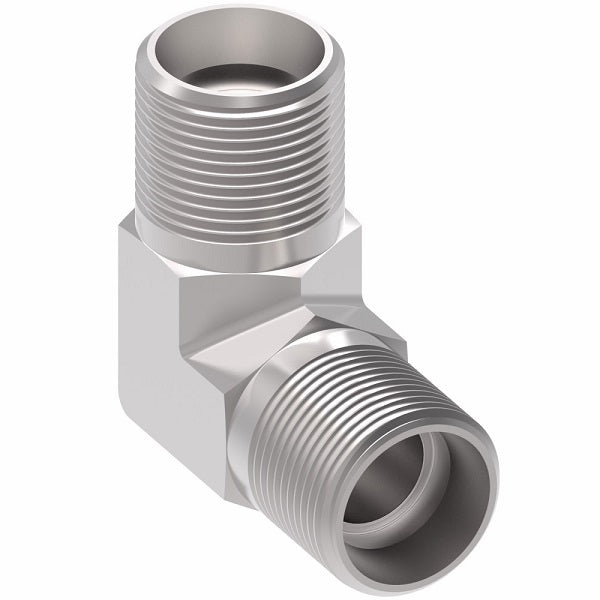

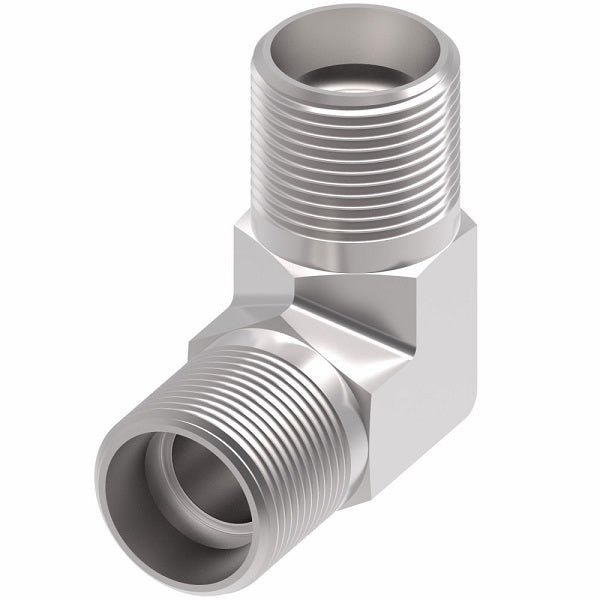

B7505X8 Ermeto by Danfoss | 7000 Series | Tube Union 90° Elbow Connector (Body Only) | 1/2" Tube OD x 1/2" Tube OD | Steel
B7505X8 Ermeto by Danfoss | 7000 Series | Tube Union 90° Elbow Connector (Body Only) | 1/2" Tube OD x 1/2" Tube OD | Steel
B7505X8 Ermeto by Danfoss | 7000 Series | Tube Union 90° Elbow Connector (Body Only) | 1/2" Tube OD x 1/2" Tube OD | Steel
B7505X8 Ermeto by Danfoss | 7000 Series | Tube Union 90° Elbow Connector (Body Only) | 1/2" Tube OD x 1/2" Tube OD | Steel

B7505X8 Ermeto by Danfoss | 7000 Series | Tube Union 90° Elbow Connector (Body Only) | 1/2" Tube OD x 1/2" Tube OD | Steel

$24.42 - $24.42
$24.42
$24.42 - $24.42
$24.42

Ermeto by Danfoss
Tube Union Connector
Tube x Tube
90° Elbow

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
Specifications for Variant SKU: B7505X8 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Tube Compression, 1/2in Tube Compression, Some Ends Match
Material(s): Steel
Specifications:
  • Ref. SAE No. 080201
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. D M Across
Flats
7505X4 B7505X4 1/4" 0.203" 0.89" 7/16"
7505X5 B7505X5 5/16" 0.234" 0.95" 1/2"
7505X6 B7505X6 3/8" 0.281" 1.05" 9/16"
7505X8 B7505X8 1/2" 0.422" 1.25" 3/4"
7505X10 B7505X10 5/8" 0.500" 1.42" 7/8"
7505X12 B7505X12 3/4" 0.656" 1.58" 1-1/16"
7505X14 B7505X14 7/8" 0.718" 1.66" 1-5/16"
7505X16 B7505X16 1" 0.875" 1.73" 1-5/16"
7505X20 B7505X20 1-1/4" 1.093" 1.89" 1-5/8"
7505X24 B7505X24 1-1/2" 1.346" 2.02" 1-7/8"
