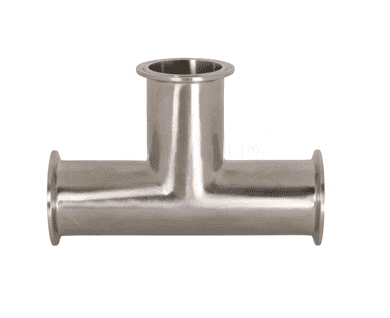

B7MP-G250 Dixon 304 Stainless Steel Sanitary Clamp Tee - 2-1/2" Tube OD

B7MP-G250 Dixon Valve 304 Stainless Steel Sanitary Clamp Tee - 2-1/2" Tube OD

Save $7.52 Save $7.52
$67.64
$67.64 - $67.64
$67.64
$60.12
$60.12 - $60.12
$60.12

Dixon Sanitary Clamp Tees - Clamp Tees - 304 Stainless Steel
Specifications for Variant SKU: B7MP-G250 Dixon
Shape (Orientation): Tee
Ends Configuration: 2-1/2in Sanitary Clamp End, 2-1/2in Sanitary Clamp End, 2-1/2in Sanitary Clamp End, Some Ends Match
Material(s): 304 Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
Weight
(Lbs.)
A B
B7MP-G100 1" 4.750" 2.375" 0.6800
B7MP-G150 1-1/2" 5.500" 2.750" 0.7200
B7MP-G200 2" 7.000" 3.500" 1.2300
B7MP-G250 2-1/2" 7.000" 3.500" 1.4400
B7MP-G300 3" 7.500" 3.750" 1.7800
B7MP-G400 4" 9.000" 4.500" 3.5300
B7MP-G600 6" 13.000" 6.500" 14.0000
B7MP-G800 8" 15.750" 7.875" 16.5200
