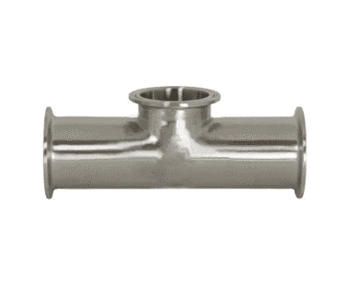

B7MPS-R100 Dixon Valve 316L Stainless Steel Sanitary Short Outlet Clamp Tee - 1" Tube OD

B7MPS-R100 Dixon Valve 316L Stainless Steel Sanitary Short Outlet Clamp Tee - 1" Tube OD

Save $27.34 Save $27.34
$68.35
$68.35 - $68.35
$68.35
$41.01
$41.01 - $41.01
$41.01

Dixon Sanitary Fittings Sanitary Clamp Tee - Short Outlet Clamp Tee - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B7MPS-R100 Dixon
Shape (Orientation): Tee
Ends Configuration: 1in Sanitary Clamp End, 1in Sanitary Clamp End, 1in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Part Number Tube OD Dimensions
 Weight (Lbs.)
A B ID OD
B7MPS-R75 3/4" - - - - 0.5000
B7MPS-R100 1" 4.75" 1.13" 1.00" 0.87" 0.5900
B7MPS-R150 1-1/2" 5.50" 1.38" 1.50" 1.37" 1.0600
B7MPS-R200 2" 7.00" 1.63" 2.00" 1.87" 1.0200
B7MPS-R300 3" 7.50" 2.13" 3.00" 2.87" 1.8960
B7MPS-R400 4" 9.00" 2.75" 4.00" 3.83" 2.3000
