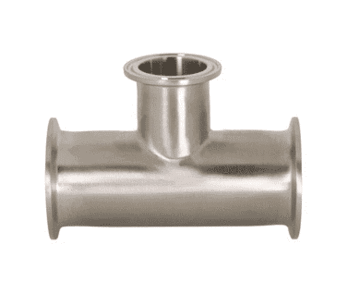

B7RMP-R10050 Dixon Valve 316L Stainless Steel Sanitary Clamp Reducing Tee - 1" x 1/2" Tube OD

B7RMP-R10050 Dixon Valve 316L Stainless Steel Sanitary Clamp Reducing Tee - 1" x 1/2" Tube OD

Save $40.09 Save $40.09
$100.22
$100.22 - $100.22
$100.22
$60.13
$60.13 - $60.13
$60.13

Dixon Sanitary Fittings Sanitary Clamp Reducer - Clamp Reducing Tee - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B7RMP-R10050 Dixon
Shape (Orientation): Tee
Ends Configuration: 1in Sanitary Clamp End, 1/2in Sanitary Clamp End, 1in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Part Number Tube OD Dimensions
Weight (Lbs.)
A B C
B7RMP-R7550 3/4" x 1/2" - 2.500" 2.500" 0.3050
B7RMP-R10050 1" x 1/2" - 2.630" 2.630" 0.5950
B7RMP-R10075 1" x 3/4" 5.250" 2.625" 2.625" 0.6150
B7RMP-R15050 1-1/2" x 1/2" 5.750" 2.875" 2.875" 0.6950
B7RMP-R15075 1-1/2" x 3/4" - 2.880" 2.880" 0.7000
B7RMP-R150100 1-1/2" x 1" 4.312" 2.156" 1.875" 0.6500
B7RMP-R20050 2" x 1/2" 6.750" 3.375" 3.125" 0.9850
B7RMP-R20075 2" x 3/4" 6.750" 3.375" 3.125" 1.0150
B7RMP-R200100 2" x 1" 5.125" 2.562" 2.125" 0.8580
B7RMP-R200150 2" x 1-1/2" 5.125" 2.562" 2.406" 0.8200
B7RMP-R250150 2-1/2" x 1-1/2" 5.688" 2.844" 2.812" 1.1355
B7RMP-R250200 2-1/2" x 2" 5.688" 2.844" 2.812" 1.2100
B7RMP-R300150 3" x 1-1/2" 6.188" 3.093" 2.906" 1.3300
B7RMP-R300200 3" x 2" 6.188" 3.093" 3.063" 1.4500
B7RMP-R300250 3" x 2-1/2" - 3.090" 3.090" 1.4900
B7RMP-R400150 4" x 1-1/2" - 4.060" 3.410" 2.865
B7RMP-R400200 4" x 2" - 4.060" 3.560" 2.7050
B7RMP-R400250 4" x 2-1/2" - 4.060" 3.590" 3.0960
B7RMP-R400300 4" x 3" - 4.060" 3.590" 2.6750
B7RMP-R600200 6" x 2" - 6.500" 6.000" 14.4600
