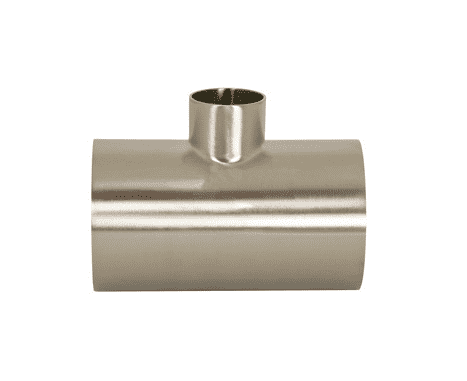

B7RWWW-R400150P Dixon Valve 316L Stainless Steel Sanitary Polished Reducing Weld Tee - 4" x 1-1/2" Tube OD

B7RWWW-R400150P Dixon Valve 316L Stainless Steel Sanitary Polished Reducing Weld Tee - 4" x 1-1/2" Tube OD

Save $4.58 Save $4.58
$45.80
$45.80 - $45.80
$45.80
$41.22
$41.22 - $41.22
$41.22

Dixon Sanitary Fittings Sanitary Polished Weld Tee - Polished Reducing Weld Tee - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).

3A sanitary finish ID and OD
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B7RWWW-R400150P Dixon
Shape (Orientation): Tee
Ends Configuration: 4in Weld End, 4in Weld End, 1-1/2in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • Finish: Polished
Part Number Tube OD Dimensions
 Nominal Wall Weight (Lbs.)
A B C D
B7RWWW-R7550P 3/4" x 1/2" 4.000" 2.000" - - .065" 0.2350
B7RWWW-R10050P 1" x 1/2" 4.250" 2.130" - - .065" 0.2915
B7RWWW-R150100P 1-1/2" x 1" 3.312" 1.375" 1.500" 1.000" .065" 0.0300
B7RWWW-R15050P 1-1/2" x 1/2" 4.750" 2.380" - - .065" 0.4350
B7RWWW-R15075P 1-1/2" x 3/4" 4.750" 2.380" - - .065" 0.4950
B7RWWW-R200100P 2" x 1" 4.124" 1.625" 2.000" 1.000" .065" 0.4600
B7RWWW-R200150P 2" x 1-1/2" 4.124" 1.906" 2.000" 1.500" .065" 0.5000
B7RWWW-R250100P 2-1/2" x 1" - - - - - -
B7RWWW-R250150P 2-1/2" x 1-1/2" 4.688" 2.156" 2.500" 1.500" .065" 0.7400
B7RWWW-R250200P 2-1/2" x 2" 4.688" 2.312" 2.500" 2.000" .065" 0.6800
B7RWWW-R300100P 3" x 1" - - - - - 1.6400
B7RWWW-R300150P 3" x 1-1/2" 5.188" 2.406" 3.000" 1.500" .065" 0.9100
B7RWWW-R300200P 3" x 2" 5.188" 2.562" 3.000" 2.000" .065" 0.8800
B7RWWW-R300250P 3" x 2-1/2" 5.190" 2.590" - - .083" 0.9000
B7RWWW-R400100P 4" x 1" - - - - - -
B7RWWW-R400150P 4" x 1-1/2" 6.880" 2.910" - - .083" 2.1700
B7RWWW-R400200P 4" x 2" 6.876" 3.062" 4.000" 2.000" .083" 1.9300
B7RWWW-R400250P 4" x 2-1/2" 6.880" 3.090" - - .083" 1.9150
B7RWWW-R400300P 4" x 3" 6.876" 3.094" 4.000" 3.000" .083" 1.9800
B7RWWW-R600200P 6" x 2" 11.250" 4.500" - - .109" 6.6700
B7RWWW-R600300P 6" x 3" 11.250" 4.880" - - .109" 6.5500
B7RWWW-R600400P 6" x 4" 11.250" 5.130" - - .109" 6.6950
B7RWWW-R800400P 8" x 4" - - - - - 10.2500
