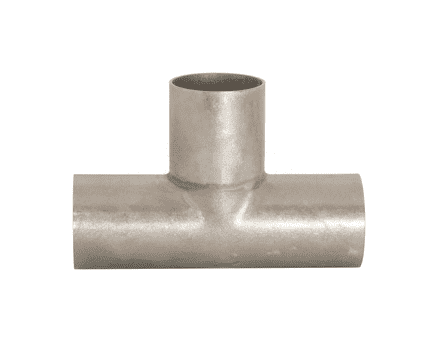

B7W-R75U Dixon 316L Stainless Steel Sanitary Unpolished Long Weld Tee - 3/4" Tube OD

B7W-R75U Dixon Valve 316L Stainless Steel Sanitary Unpolished Long Weld Tee - 3/4" Tube OD

Save $10.48 Save $10.48
$26.20
$26.20 - $26.20
$26.20
$15.72
$15.72 - $15.72
$15.72

Dixon Sanitary Fittings Sanitary Weld Unpolished Tee - Unpolished Long Weld Tee - 316L Stainless Steel
Specifications for Variant SKU: B7W-R75U Dixon
Shape (Orientation): Tee
Ends Configuration: 3/4in Weld End, 3/4in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Unpolished
Features:
  • Finish: Unpolished
Part Number Tube OD Dimensions
 Nominal Wall Weight (Lbs.)
A B OD ID
B7W-R50U 1/2" 3.75" 1.88" 0.50" 0.37" .065" 1.2500
B7W-R75U 3/4" 4.00" 2.00" 0.75" 0.62" .065" 0.2250
B7W-R100U 1" 3.75" 1.88" 1.00" 0.87" .065" 0.2850
B7W-R150U 1-1/2" 4.50" 2.25" 1.50" 1.37" .065" 0.4850
B7W-R200U 2" 6.00" 3.00" 2.00" 1.87" .065" 0.8800
B7W-R250U 2-1/2" 6.00" 3.00" 2.50" 2.37" .065" 1.0725
B7W-R300U 3" 6.50" 3.25" 3.00" 2.87" .065" 1.3900
B7W-R400U 4" 7.75" 3.88" 4.00" 3.83" .083" 2.6300
B7W-R600U 6" 11.25" 5.63" 6.00" 5.78" .109" 7.1250
B7W-R800U 8" 14.00" 7.00" 8.00" 7.78" .120" 11.5100
