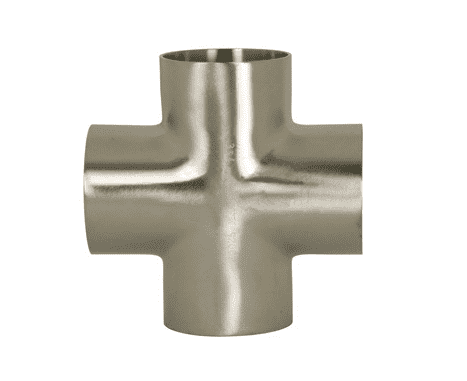

B9WWWW-R100P Dixon Valve 316L Stainless Steel Sanitary Polished Weld Cross - 1" Tube OD

B9WWWW-R100P Dixon Valve 316L Stainless Steel Sanitary Polished Weld Cross - 1" Tube OD

$20.25 - $20.25
$20.25
$21.25
$21.25 - $21.25
$21.25

Dixon Sanitary Fittings Sanitary Polished Weld Cross - 316 Stainless Steel

3A sanitary finish ID and OD

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B9WWWW-R100P Dixon
Shape (Orientation): Cross
Ends Configuration: 1in Weld End, 1in Weld End, 1in Weld End, 1in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • Finish: Polished
Part Number Tube OD Dimensions
 Nominal Wall Weight (Lbs.)
A OD ID
B9WWWW-R100P 1" 2.25" 1.00" 0.87" .065" 0.1700
B9WWWW-R150P 1-1/2" 3.31" 1.50" 1.37" .065" 0.3950
B9WWWW-R200P 2" 4.13" 2.00" 1.87" .065" 0.6250
B9WWWW-R250P 2-1/2" 4.69" 2.50" 2.37" .065" 0.8650
B9WWWW-R300P 3" 5.19" 3.00" 2.87" .065" 1.1100
B9WWWW-R400P 4" 6.88" 4.00" 3.83" .083" 2.4500
