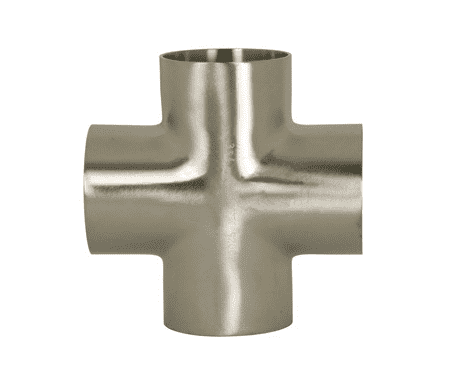

B9WWWW-R250P Dixon Valve 316L Stainless Steel Sanitary Polished Weld Cross - 2-1/2" Tube OD

B9WWWW-R250P Dixon Valve 316L Stainless Steel Sanitary Polished Weld Cross - 2-1/2" Tube OD

$67.47 - $67.47
$67.47
$70.80
$70.80 - $70.80
$70.80

Dixon Sanitary Fittings Sanitary Polished Weld Cross - 316 Stainless Steel

3A sanitary finish ID and OD

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B9WWWW-R250P Dixon
Shape (Orientation): Cross
Ends Configuration: 2-1/2in Weld End, 2-1/2in Weld End, 2-1/2in Weld End, 2-1/2in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • Finish: Polished
Part Number Tube OD Dimensions
 Nominal Wall Weight (Lbs.)
A OD ID
B9WWWW-R100P 1" 2.25" 1.00" 0.87" .065" 0.1700
B9WWWW-R150P 1-1/2" 3.31" 1.50" 1.37" .065" 0.3950
B9WWWW-R200P 2" 4.13" 2.00" 1.87" .065" 0.6250
B9WWWW-R250P 2-1/2" 4.69" 2.50" 2.37" .065" 0.8650
B9WWWW-R300P 3" 5.19" 3.00" 2.87" .065" 1.1100
B9WWWW-R400P 4" 6.88" 4.00" 3.83" .083" 2.4500
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
