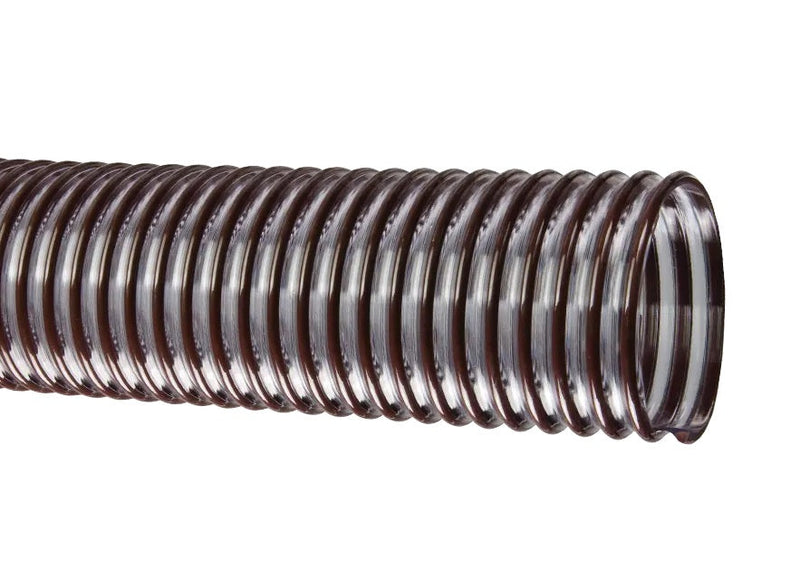

BARK500X100 Tigerflex® "Bark Hose" by Kuriyama | BARK™ Series | Standard-Duty Material Handling Hose | PVC | 5" ID | 5.47" OD | 100ft Length

BARK500X100 Tigerflex® "Bark Hose" by Kuriyama | BARK™ Series | Standard-Duty Material Handling Hose | PVC | 5" ID | 5.47" OD | 100ft Length

$0.00 - $0.00
$0.00
$1,084.80
$1,084.80 - $1,084.80
$1,084.80
p>Kuriyama of America Inc.
Tigerflex® | "Bark Hose" BARK™ Series | Standard-Duty Material Handling Hose | PVC

Designed for landscaping and light material handling.

Ideal for lawn and leaf collection as well as transferring mulch, bark, wood chips, soil, seed, compost, and other surfacing materials.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: BARK500X100 Kuriyama | 100 |
Brand: Bark Hose, Tigerflex
Series: BARK Series
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 5in
Outer Diameter: 5.47in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection
Compatible with the following Series: AL-MHS Series  |   AL-MHM Series  |   AL-MHF Series  |   AL-MHD Series  |   AL-MHA Series
Applications: Lawn and leaf collection.
Material handling - standard duty.
Mulch, bark, wood chips and other surfacing material delivery.
Soil, seed and compost delivery.
Tube: PVC. Reinforcement: Rigid PVC helix.
Cover: - Service Temperature Range: -4°F (-20°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Specifications: Phthalate Free (10)
RoHS (11)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • Abrasion Resistant PVC Tube - Formulated from highly durable PVC compounds for increased abrasion and tear resistance versus standard PVC hoses.
  • Convoluted Outer Cover - Provides increased hose flexibility. Allows for easier unwinding and winding on hose reels.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
BARK400X100 4" 101.6mm 4.45" 113.0mm 18 PSI 11 PSI 15 in Hg 10 in Hg 10" 0.95lbs
BARK500X100 5" 127.0mm 5.47" 138.9mm 17 PSI 10 PSI 14 in Hg 8 in Hg 11" 1.29lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
