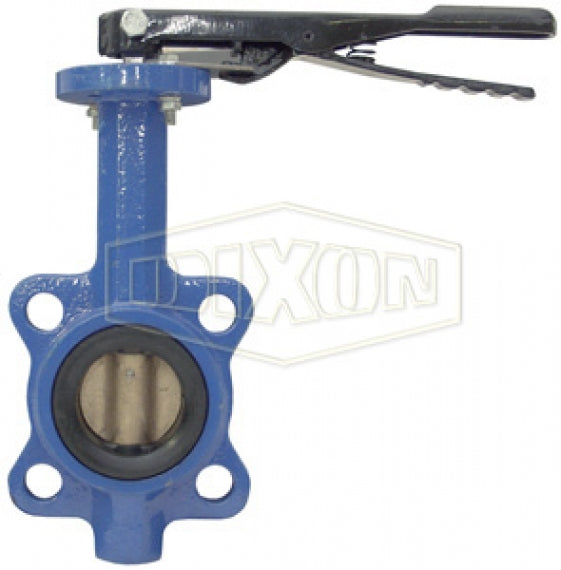

BBFVW600E by Dixon Valve | Butterfly Valve | Wafer Style | 6" 150# Flange | EPDM Liner | Ductile Iron

Save $151.60

$524.73

$524.73 - $524.73

$524.73

$373.13

$373.13 - $373.13

$373.13

Dixon Valve & Coupling
Ductile Iron Butterfly Valve | Wafer Style

For use between two 150 lb. flanges.

Quantity

Specifications for Variant SKU: BBFVW600E Dixon
Shape (Orientation):	Straight
Ends Configuration:	6in 150# Flange, 6in 150# Flange, Some Ends Match
Material(s):	Ductile Iron
Seal Material(s):	EPDM

Features:
10 position trigger grip handle.
Materials:
Ductile iron body, ASTM A536. Aluminum bronze disc, ASTM B148, ALY.954. PTFE bushing. Stainless steel top and bottom stems.
Specifications:
Pressure rating: 200 PSI at ambient temperature 70°F (21°C)
Warning:
Not Recommended For Steam Service.

Part Number Valve with Nitrile Rubber Liner	Part Number Valve with EPDM Liner	Size
BBFVW200	BBFVW200E	2"
BBFVW300	BBFVW300E	3"
BBFVW400	BBFVW400E	4"
BBFVW600	BBFVW600E	6"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
