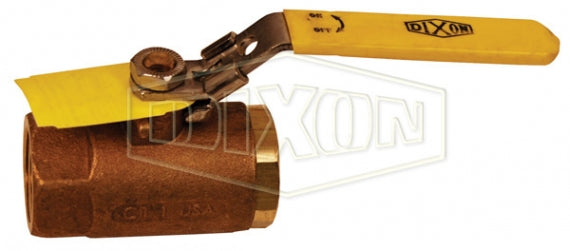

BBLV100 by Dixon Valve | Locking Handle Ball Valve | Standard Port | 1" Female NPT x 1" Female NPT | Bronze

BBLV100 by Dixon Valve | Locking Handle Ball Valve | Standard Port | 1" Female NPT x 1" Female NPT | Bronze

Save $0.93 Save $0.93
$87.12
$87.12 - $87.12
$87.12
$86.19
$86.19 - $86.19
$86.19

Dixon Valve & Coupling
Locking Handle Ball Valve | Bronze

For control of air, water, oil, and gas in hose or pipe lines.
Specifications for Variant SKU: BBLV100 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s): Bronze
Features:
  • Blow-out proof RPTFE stem.
  • Full and standard port valves are repairable.
Materials:
  • Chrome-plated bronze ball.
  • Stainless steel sliding lock mechanism secures handle in open or closed position; can be padlocked opened or closed.
  • Plated steel handles and nuts with vinyl sleeves.
Specifications:
  • Pressure rating: 600 PSI CWP; 150 PSI saturated steam.
Part Number Female NPT Port
BBLV25 1/4" Full
BBLV38 3/8" Full
BBLV50 1/2" Full
BBLV75 3/4" Standard
BBLV100 1" Standard
BBLV125 1-1/4" Standard
BBLV150 1-1/2" Standard
BBLV200 2" Standard
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
