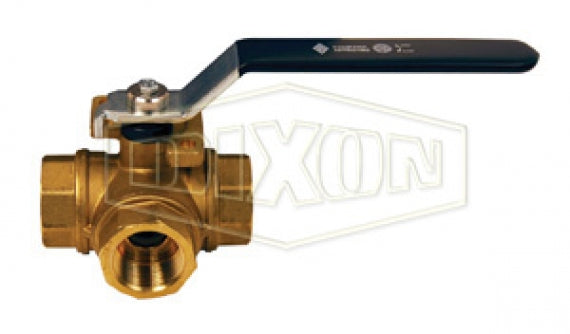

BBV150DTW by Dixon Valve | 3-Way Diverting Ball Valve | T Flow | Standard Port | 1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT | Brass

BBV150DTW by Dixon Valve | 3-Way Diverting Ball Valve | T Flow | Standard Port | 1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT | Brass

Save $238.19 Save $238.19
$595.48
$595.48 - $595.48
$595.48
$357.29
$357.29 - $357.29
$357.29

Dixon Valve & Coupling
3-Way Diverting Ball Valve | T Flow | Brass
Specifications for Variant SKU: BBV150DTW Dixon
Shape (Orientation): Tee
Ends Configuration: 1-1/2in Female NPT, 1-1/2in Female NPT, 1-1/2in Female NPT, Some Ends Match
Material(s): Brass
Seal Material(s): PTFE
Features:
  • Blow-out proof stem.
  • Adjustable stem packing.
Materials:
  • Body: Brass.
  • Chrome plated brass ball.
  • PTFE seats, seals, and thrust washer.
Specifications:
  • Maximum temperature: 366°F (186°C).
  • Pressure rating: 400 PSI WOG; 100 PSI saturated steam.
Note:
  • 1/4 turn handle can be adjusted to any orientation. Notches on the valve stem reflect the three openings on the ball.
Part Number Female NPT x Female NPT x Female NPT Port
BBV50DTW 1/2" Standard
BBV75DTW 3/4" Standard
BBV100DTW 1" Standard
BBV125DTW 1-1/4" Standard
BBV150DTW 1-1/2" Standard
BBV200DTW 2" Standard
