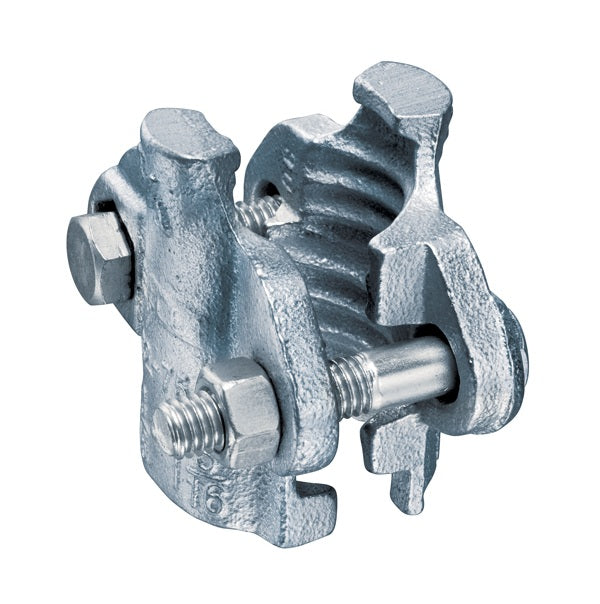

BC2-075A by Kuriyama | BC2 Series | 2-Bolt Interlocking Hose Clamp | 3/4" Hose ID | 1-3/16" to 1-5/16" Clamp Size Range | Plated Ductile Iron

Save $6.26

$11.29

$11.29 - $11.29

$11.29

$5.03

$5.03 - $5.03

$5.03

Kuriyama of America Inc.
BC2 Series | 2-Bolt Interlocking Hose Clamp | Plated Ductile Iron

Designed for use with ground joint couplings.

Specifications for Variant SKU: BC2-075A Kuriyama
Series:	BC2 Series
Material(s):	Plated Ductile Iron
Applicable Specs & Approvals:	ASTM A536 Grade 65/45/12
Minimum Clamp I.D.:	1.1875in
Maximum Clamp I.D.:	1.3125in

What are the Features?

Designed for use with ground joint couplings.
Clamps are manufactured with a lip, which connects with the interlocking collar design found on the ground joint hose shank couplings.

What are the Materials?

Ductile iron plated.
ASTM A536, Grade 65/45/12.

What are the Specifications?

Maximum Service Temperature: +450°F (+232°C)

Part Number	Hose ID Size (in)	Clamp Size Range (in)	Weight Each (lbs)	Maximum Torque (ft lbs)
BC2-050	1/2"	13/16" - 15/16"	0.31 lbs	6 ft lbs
BC2-050A	1/2"	15/16" - 1-1/16"	0.44 lbs	12 ft lbs
BC2-050B	1/2"	1-1/16" - 1-3/16"	0.48 lbs	12 ft lbs
BC2-075	3/4"	1-5/32" - 1-9/32"	0.73 lbs	21 ft lbs
BC2-075A	3/4"	1-3/16" - 1-5/16"	0.79 lbs	21 ft lbs
BC2-075B	3/4"	1-5/16" - 1-1/2"	0.88 lbs	21 ft lbs
BC2-075C	3/4"	1-1/2" - 1-11/16"	1.15 lbs	21 ft lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
