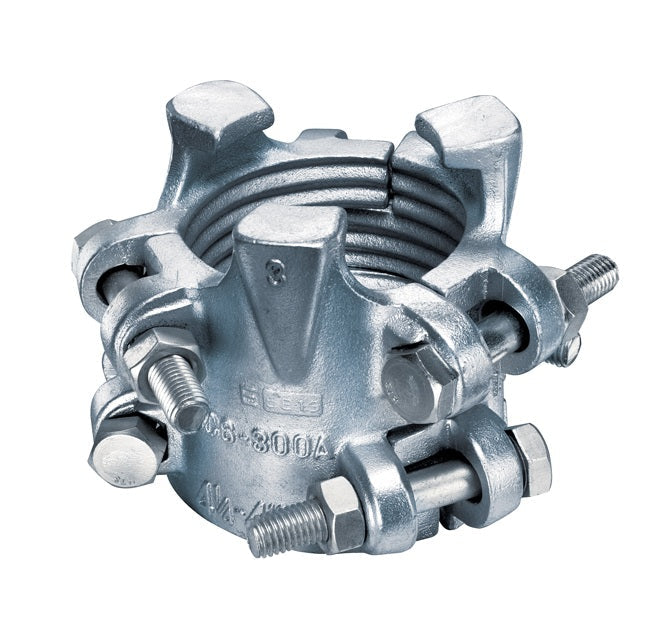

BC6-400A by Kuriyama | BC6 Series | 6-Bolt Interlocking Hose Clamp | 4" Hose ID | 4-7/8" to 5-5/16" Size Range | Plated Ductile Iron

Save $46.77

$187.28

$187.28 - $187.28

$187.28

$140.51

$140.51 - $140.51

$140.51

Kuriyama of America Inc.
BC6 Series | 6-Bolt Interlocking Hose Clamp | Plated Ductile Iron

Designed for use with ground joint couplings.

Specifications for Variant SKU: BC6-400A Kuriyama
Series:	BC6 Series
Material(s):	Plated Ductile Iron
Applicable Specs & Approvals:	ASTM A536 Grade 65/45/12
Minimum Clamp I.D.:	4.875in
Maximum Clamp I.D.:	5.3125in

What are the Features?

Designed for use with ground joint couplings.
Clamps are manufactured with a lip, which connects with the interlocking collar design found on the ground joint hose shank couplings.

What are the Materials?

Ductile iron plated.
ASTM A536, Grade 65/45/12.

What are the Specifications?

Maximum Service Temperature: +450°F (+232°C)

Part Number	Hose ID Size (in)	Clamp Size Range (in)	Weight Each (lbs)	Maximum Torque (ft lbs)
BC6-300A	3"	4-1/4" - 4-13/16"	12.32 lbs	150 ft lbs
BC6-400A	4"	4-7/8" - 5-5/16"	20.30 lbs	200 ft lbs
BC6-400B	4"	5-1/8" - 6-3/16"	21.45 lbs	200 ft lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
