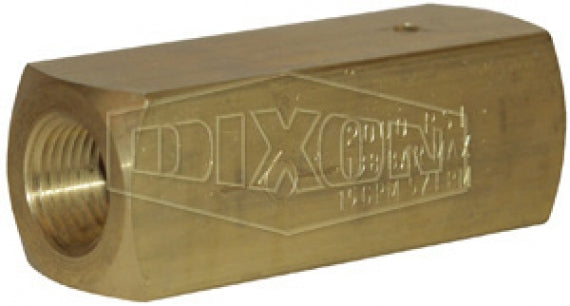

BCV800 by Dixon Valve | Check Valve | Series C | 1/2" Female NPT x 1/2" Female NPT | Brass

BCV800 by Dixon Valve | Check Valve | Series C | 1/2" Female NPT x 1/2" Female NPT | Brass

Save $8.13 Save $8.13
$96.33
$96.33 - $96.33
$96.33
$88.20
$88.20 - $88.20
$88.20

Dixon Valve & Coupling
Check Valve | Series C

Provides free flow in one direction and dependable shutoff in the opposite direction.
Specifications for Variant SKU: BCV800 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s): Brass
Specifications:
  • Maximum operating pressure: 2000 PSI at ambient temperature 70°F (21°C)
  • Cracking pressure: 5 PSI
Part Number Material Female NPT x Female NPT Free Flow
GPM		 Maximum Operating
at 70°F (21°C)
PSI
BCV200 Brass 1/8" x 1/8" 3 GPM 2000 PSI
BCV400 Brass 1/4" x 1/4" 5 GPM 2000 PSI
BCV600 Brass 3/8" x 3/8" 8 GPM 2000 PSI
BCV800 Brass 1/2" x 1/2" 15 GPM 2000 PSI

SCV200 Steel 1/8" x 1/8" 3 GPM 5000 PSI
SCV400 Steel 1/4" x 1/4" 5 GPM 5000 PSI
SCV600 Steel 3/8" x 3/8" 8 GPM 5000 PSI
SCV800 Steel 1/2" x 1/2" 15 GPM 5000 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
