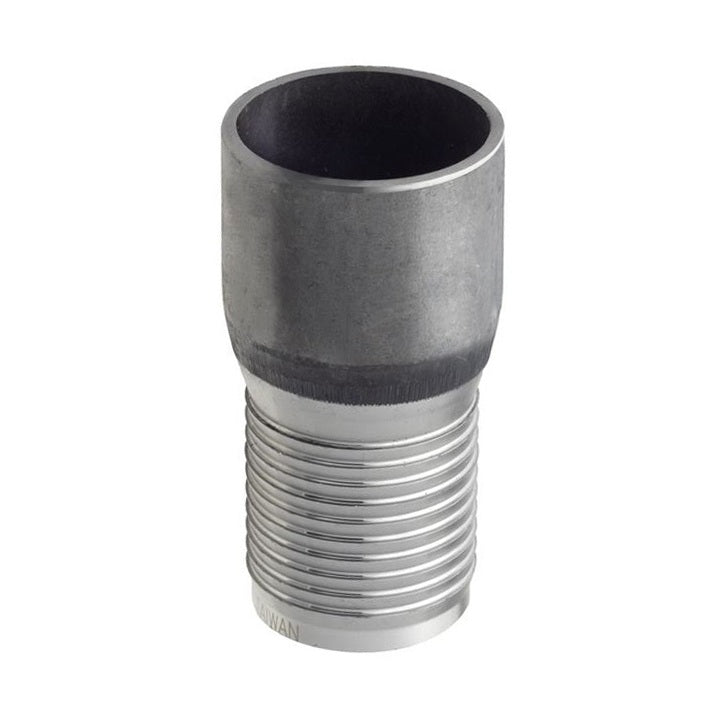

BEN300 by Kuriyama | BEN Series | Combination Hose Nipple | 3" Beveled Plain End x 3" Hose Barb | Plain Steel

BEN300 by Kuriyama | BEN Series | Combination Hose Nipple | 3" Beveled Plain End x 3" Hose Barb | Plain Steel

Save $10.13 Save $10.13
$21.33
$21.33 - $21.33
$21.33
$11.20
$11.20 - $11.20
$11.20

Kuriyama of America Inc.
Combination Hose Nipple | BEN Series | Beveled Plain End x Hose Barb | Plain Steel

Versatile hose connectors designed to connect hose and pipes.

Frequently used in low pressure suction and discharge applications.
Specifications for Variant SKU: BEN300 Kuriyama
Series: BEN Series
Shape (Orientation): Straight
Ends Configuration: 3in Beveled End, 3in Hose Barb
Material(s): Steel
Applicable Specs & Approvals: ASTM A53 Grade B

What are the Features?

  • Versatile hose connectors designed to connect hose and pipes.
  • Frequently used in low pressure suction and discharge applications.
  • Beveled end for ease of connection to pipes.
  • Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

  • Plain Steel - Complies with ASTM A53 B welded pipe.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
BEN100 1" 125 PSI 0.35 lbs
BEN125 1-1/4" 125 PSI 0.51 lbs
BEN150 1-1/2" 125 PSI 0.60 lbs
BEN200 2" 75 PSI 0.90 lbs
BEN250 2-1/2" 75 PSI 1.87 lbs
BEN300 3" 75 PSI 2.65 lbs
BEN400 4" 75 PSI 3.48 lbs
BEN500 5" 75 PSI 8.38 lbs
BEN600 6" 75 PSI 10.98 lbs
BEN800 8" 50 PSI 17.59 lbs
BEN1000 10" 50 PSI 23.26 lbs
BEN1200 12" 50 PSI 35.34 lbs
