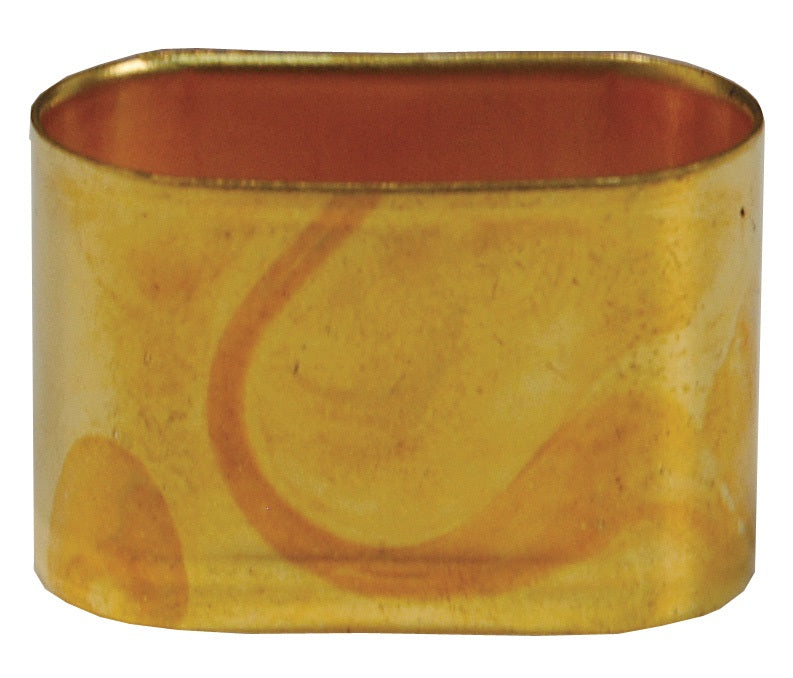

BFO700 by Dixon Valve | Welding Oxy-Acetylene Ferrule | 0.700" x 1.325" ID | Brass | (Pack of 25)

BFO700 by Dixon Valve | Welding Oxy-Acetylene Ferrule | 0.700" x 1.325" ID | Brass | (Pack of 25)

Save $1.79 Save $1.79
$16.12
$16.12 - $16.12
$16.12
$14.33
$14.33 - $14.33
$14.33

Dixon Valve
Welding Oxy-Acetylene Ferrule

Use with Oxy-Acetylene Hose.

For Low-pressure welding applications, connecting your tank to pressure regulators or torches.

For use with acetylene, butane, fuel gases, LP gas, natural gas, oxygen, and propane.


Package Quantity: 25 EA

Specifications for Variant SKU: BFO700 Dixon | 25 |
Series: BFO Series
Shape (Orientation): No Orientation
Material(s): Brass
Use:
  • It is recommended that hose assemblies be fabricated using hose clamps or crimped ferrules in conjunction with hose barbs.
Compatible Hoses:
  • All Grade R and Grade RM single or twin-line oxygen (green) acetylene (red) industrial welding hoses.
  • Parker 7110 and 7126 or equivalent.
Approvals:
  • Meets Compressed Gas Association (CGA) connection Nos.
Specifications:
  • 200 PSI (1400 kPa) 72°F (22°C) maximum working pressure with 4:1 safety factor for fittings, but a 15 PSI maximum must be observed on the acetylene side.
  • Operating temperatures: -40°F to 160°F (-40°F to 71°C) at 150 PSI maximum.
Material:
  • Brass: Alloy 360.
Safety Notes:
  • Use 1" long crimp ferrules only for optimum hose engagement.
  • Use only acetylene as a fuel gas.
  • Use only a proper striker for ignition.
  • A thread sealant is recommended for tapered pipe thread connections with 156 and 158-Series adapters.
Brass
Part Number		 Standard Ind.
Part Number		 Inside Dimensions Overall Length Metal Gauge
BFO474 9979 0.474" x 0.943" 15/32" .019"
BFO535 9940P 0.535" x 1.071" 3/4" .024"
BFO593 9593 0.593" x 1.109" 3/4" .024"
BFO700 8337 0.700" x 1.325" 0.719" .025"
