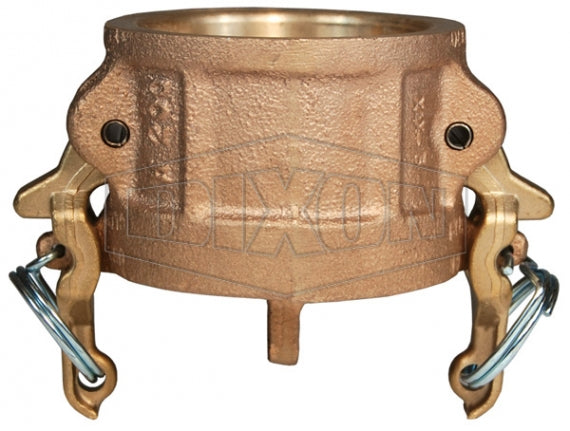

BH250 by Dixon Valve | Boss-Lock Cam & Groove Dust Cap | Type H | 2-1/2" Coupler End | Brass

BH250 by Dixon Valve | Boss-Lock Cam & Groove Dust Cap | Type H | 2-1/2" Coupler End | Brass

Save $71.02 Save $71.02
$177.55
$177.55 - $177.55
$177.55
$106.53
$106.53 - $106.53
$106.53

Dixon Valve
Boss-Lock Cam & Groove Fitting | Type H | Dust Cap

Prevents dust and debris from entering the hose, while protecting the coupling from damage when not in use.
Specifications for Variant SKU: BH250 Dixon
Brand: Boss-Lock
Cam Type: Other
Ends Configuration: 2-1/2in Female Cam & Groove
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile rubber gasket supplied standard.
  • Supplied with safety clips.
Safety Notes:
  • Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.
  • Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6
Aluminum
Part Number		 Brass
Part Number		 Plated Malleable Iron
Part Number		 316 Stainless Steel
Part Number		 Size
- - - RH75BL 3/4"
AH100 BH100 - RH100BL 1"
AH125 BH125 - RH125BL 1-1/4"
AH150 BH150 IH150 RH150BL 1-1/2"
AH200 BH200 IH200 RH200BL 2"
AH250 BH250 - - 2-1/2"
AH300 BH300 IH300 RH300BL 3"
AH400 BH400 IH400 RH400BL 4"
AH600 BH600 IH600 - 6"
AH800 - - - 8"
