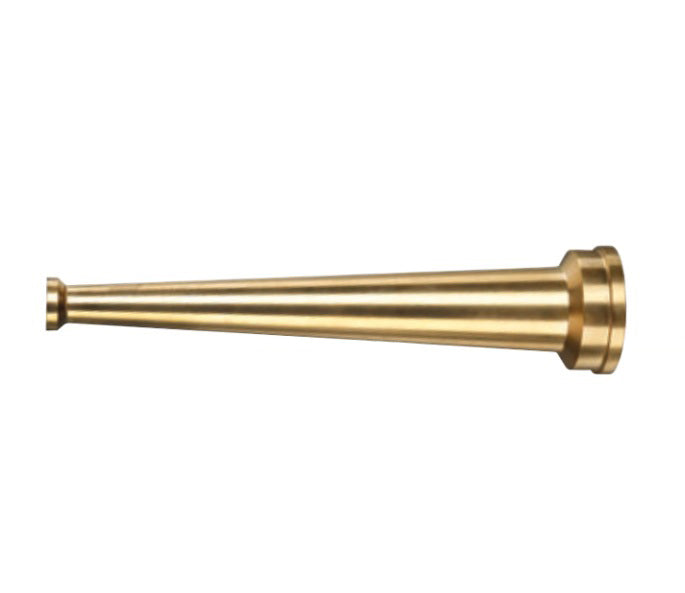

BHN-1608SH by Kuriyama | BHN Series | Hose Nozzle | 1" Female NPSH | 5/16" Nozzle Hole | 8" Length | Brass

Save $13.73

$86.92

$86.92 - $86.92

$86.92

$73.19

$73.19 - $73.19

$73.19

Kuriyama of America Inc.
BHN Series | Hose Nozzle | Brass

Designed for use in connection of hoses, nozzles, hydrants, pipes, or other fittings using NST, NPSH, or GHT threads.

Specifications for Variant SKU: BHN-1608SH Kuriyama
Series:	BHN Series
Ends Configuration:	1in Female NPSH
Material(s):	Brass
Applicable Specs & Approvals:	ASTM B 124

What are the Features?

Designed for use in connection of hoses, nozzles, hydrants, pipes, or other fittings using NST, NPSH, or GHT threads.
Brass adapters are more durable and heat resistant than aluminum adapters.

What are the Materials?

Made of heavy-duty brass material.
Brass ASTM B124, Grade 37700.

Part Number	Female Thread (in)	Nozzle Hole Size (in)	Length (in)	PSI Rating at 70°F	Weight Each (lbs)
BHN-1206GH	3/4 Female GHT	5/16"	6"	6 PSI	0.37 lbs
BHN-1206SH	3/4 Female NPSH	5/16"	6"	6 PSI	0.37 lbs
BHN-1608SH	1 Female NPSH	5/16"	8"	8 PSI	0.68 lbs
BHN-2010SH	1-1/4 Female NPSH	7/16"	10"	10 PSI	1.23 lbs
BHN-2410SH	1-1/2 Female NPSH	1/2"	10"	10 PSI	1.32 lbs
BHN-2410ST	1-1/2 Female NST	1/2"	10"	10 PSI	1.32 lbs
BHN-3212SH	2 Female NPSH	13/16"	12"	12 PSI	2.09 lbs
BHN-4012SH	2-1/2 Female NPSH	13/16"	12"	12 PSI	2.87 lbs
BHN-4012ST	2-1/2 Female NST	13/16"	12"	12 PSI	2.87 lbs
