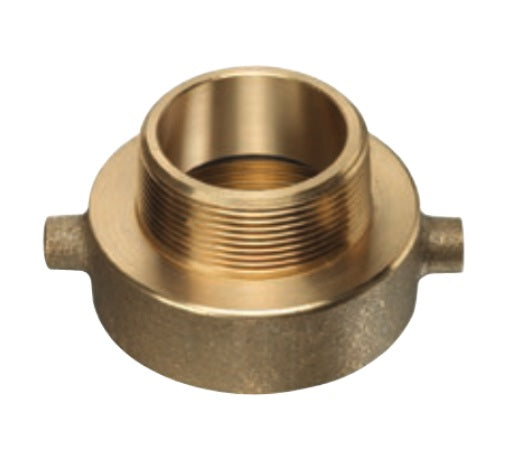

BHYA-40ST24ST by Kuriyama | BHYA Series | Hydrant Adapter | 2-1/2" Female NST x 1-1/2" Male NST | Brass

BHYA-40ST24ST by Kuriyama | BHYA Series | Hydrant Adapter | 2-1/2" Female NST x 1-1/2" Male NST | Brass

Save $11.75 Save $11.75
$44.74
$44.74 - $44.74
$44.74
$32.99
$32.99 - $32.99
$32.99

Kuriyama of America Inc.
BHYA Series | Hydrant Adapter

Designed for use in connection of hoses, nozzles, hydrants, pipes, or other fittings using NST, NPSH, or GHT threads.
Specifications for Variant SKU: BHYA-40ST24ST Kuriyama
Series: BHYA Series
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NST, 1-1/2in Male NST
Material(s): Brass
Applicable Specs & Approvals: ASTM B584

What are the Features?

  • Designed for use in connection of hoses, nozzles, hydrants, pipes, or other fittings using NST, NPSH, or GHT threads.
  • Brass adapters are more durable and heat resistant than aluminum adapters.

What are the Materials?

  • Made of heavy-duty brass material.
  • Brass ASTM B584, Grade C85700.
Part Number Female Thread
(in)		 Male Thread
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
BHYA-24ST12GH 1-1/2" Female NST 3/4" Male GHT 300 PSI 0.52 lbs
BHYA-40ST12GH 2-1/2" Female NST 3/4" Male GHT 300 PSI 1.16 lbs
BHYA-40ST16SH 2-1/2" Female NST 1" Male NPSH 300 PSI 1.03 lbs
BHYA-40ST24SH 2-1/2" Female NST 1-1/2" Male NPSH 300 PSI 1.00 lbs
BHYA-40ST32SH 2-1/2" Female NST 2" Male NPSH 300 PSI 1.07 lbs
BHYA-24ST24PT 1-1/2" Female NST 1-1/2" Male NPT 300 PSI 0.60 lbs
BHYA-40ST12PT 2-1/2" Female NST 3/4" Male NPT 300 PSI 0.90 lbs
BHYA-40ST16PT 2-1/2" Female NST 1" Male NPT 300 PSI 1.02 lbs
BHYA-40ST24PT 2-1/2" Female NST 1-1/2" Male NPT 300 PSI 0.91 lbs
BHYA-40ST32PT 2-1/2" Female NST 2" Male NPT 300 PSI 1.11 lbs
BHYA-40ST24ST 2-1/2" Female NST 1-1/2" Male NST 300 PSI 0.98 lbs
BHYA-48ST40ST 3" Female NST 2-1/2" Male NST 300 PSI 1.72 lbs
BHYA-24SH24ST 1-1/2" Female NPSH 1-1/2" Male NST 300 PSI 0.60 lbs
BHYA-48SH40ST 3" Female NPSH 2-1/2" Male NST 300 PSI 1.42 lbs
BHYA-24SH24PT 1-1/2" Female NPSH 1-1/2" Male NPT 300 PSI 0.60 lbs
