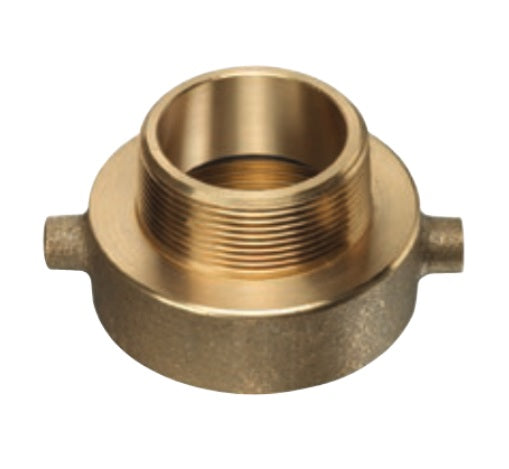

BHYA-48SH40ST by Kuriyama | BHYA Series | Hydrant Adapter | 3" Female NPSH x 2-1/2" Male NST | Brass

BHYA-48SH40ST by Kuriyama | BHYA Series | Hydrant Adapter | 3" Female NPSH x 2-1/2" Male NST | Brass

Save $13.90 Save $13.90
$69.14
$69.14 - $69.14
$69.14
$55.24
$55.24 - $55.24
$55.24

Kuriyama of America Inc.
BHYA Series | Hydrant Adapter

Designed for use in connection of hoses, nozzles, hydrants, pipes, or other fittings using NST, NPSH, or GHT threads.
Specifications for Variant SKU: BHYA-48SH40ST Kuriyama
Series: BHYA Series
Shape (Orientation): Straight
Ends Configuration: 3in Female NPSH, 2-1/2in Male NST
Material(s): Brass
Applicable Specs & Approvals: ASTM B584

What are the Features?

  • Designed for use in connection of hoses, nozzles, hydrants, pipes, or other fittings using NST, NPSH, or GHT threads.
  • Brass adapters are more durable and heat resistant than aluminum adapters.

What are the Materials?

  • Made of heavy-duty brass material.
  • Brass ASTM B584, Grade C85700.
Part Number Female Thread
(in)		 Male Thread
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
BHYA-24ST12GH 1-1/2" Female NST 3/4" Male GHT 300 PSI 0.52 lbs
BHYA-40ST12GH 2-1/2" Female NST 3/4" Male GHT 300 PSI 1.16 lbs
BHYA-40ST16SH 2-1/2" Female NST 1" Male NPSH 300 PSI 1.03 lbs
BHYA-40ST24SH 2-1/2" Female NST 1-1/2" Male NPSH 300 PSI 1.00 lbs
BHYA-40ST32SH 2-1/2" Female NST 2" Male NPSH 300 PSI 1.07 lbs
BHYA-24ST24PT 1-1/2" Female NST 1-1/2" Male NPT 300 PSI 0.60 lbs
BHYA-40ST12PT 2-1/2" Female NST 3/4" Male NPT 300 PSI 0.90 lbs
BHYA-40ST16PT 2-1/2" Female NST 1" Male NPT 300 PSI 1.02 lbs
BHYA-40ST24PT 2-1/2" Female NST 1-1/2" Male NPT 300 PSI 0.91 lbs
BHYA-40ST32PT 2-1/2" Female NST 2" Male NPT 300 PSI 1.11 lbs
BHYA-40ST24ST 2-1/2" Female NST 1-1/2" Male NST 300 PSI 0.98 lbs
BHYA-48ST40ST 3" Female NST 2-1/2" Male NST 300 PSI 1.72 lbs
BHYA-24SH24ST 1-1/2" Female NPSH 1-1/2" Male NST 300 PSI 0.60 lbs
BHYA-48SH40ST 3" Female NPSH 2-1/2" Male NST 300 PSI 1.42 lbs
BHYA-24SH24PT 1-1/2" Female NPSH 1-1/2" Male NPT 300 PSI 0.60 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
