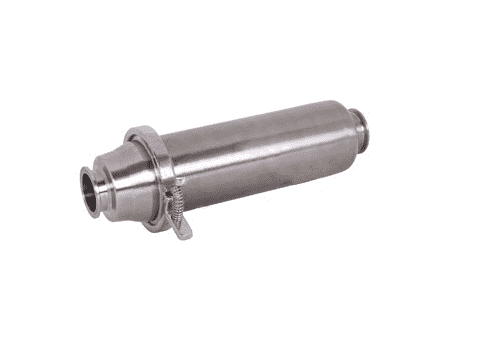

BSCCQ1-R100 Dixon Bradford 1" 316L Stainless Steel Sanitary In-line Filter / Strainer - Short

BSCCQ1-R100 Dixon Valve Bradford 1" 316L Stainless Steel Sanitary In-line Filter / Strainer - Short

Save $75.33 Save $75.33
$589.40
$589.40 - $589.40
$589.40
$514.07
$514.07 - $514.07
$514.07

Dixon Bradford™ Sanitary Filters / Strainers
Short In-line Filter / Strainer - 316L Stainless Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BSCCQ1-R100 Dixon
Applications:
  • Filter Definition:
    • A filter uses a disposable media to remove finer particulate from the stream. Dixon Sanitary holds Authorization Number 1446 for the 3-A Sanitary Standard for Filters using Single Service Filter Media, Number: 10-4. Vertical mounting is necessary to meet 3-A 10-04 requirements for minimal product clingage.
  • Strainer Definition:
    • A strainer is a device used to separate solids from fluids. Here it is used for larger particulate matter from liquid or gas. It uses cleanable media.
Features:
  • 3A sanitary, ID and OD.
  • Must be vertical mount to be 3A.
  • in-line units ship standard with the following: spring, distributor cap, clamp gasket, 1/4" perforated back-up tube, inlet and outlet bodies and squeeze clamp.
Part Number Size Dimensions
 Weight (Lbs.)
A B
BSCCQ1-R100 1" 15.75" 4.00" 10.5350
BSCCQ1-R150 1-1/2" 15.75" 4.00" 10.9700
BSCCQ1-R15018 1-1/2" (with 1/8" Holes) - - 10.9700
BSCCQ1-R200 2" 15.75" 4.00" 10.0200
BSCCQ1-R200-BF 2" (with EPDM BFV) - - 10.0200
BSCCQ1-R20018 2" (with 1/8" Holes) - - 10.0200
BSCCS1-R250 2-1/2" 15.75" 4.50" 10.7250
BSCCS1-R25018 2-1/2" (with 1/8" Holes) - - 10.7250
BSCCS1-R300 3" 15.75" 4.50" 10.6150
BSCCS1-R30018 3" (with 1/8" Holes) - - 10.6150
