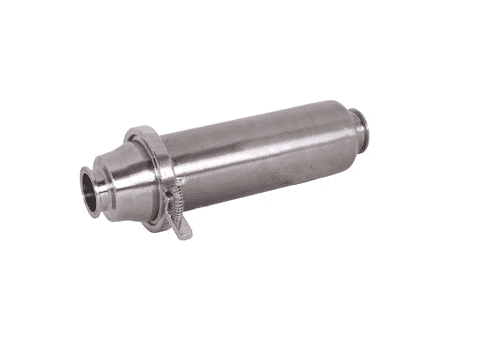

BSCCS1-R300 Dixon Bradford 3" 316L Stainless Steel Sanitary In-line Filter / Strainer - Short

BSCCS1-R300 Dixon Valve Bradford 3" 316L Stainless Steel Sanitary In-line Filter / Strainer - Short

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Bradford™ Sanitary Filters / Strainers
Short In-line Filter / Strainer - 316L Stainless Steel
Specifications for Variant SKU: BSCCS1-R300 Dixon
Applications:
  • Filter Definition:
    • A filter uses a disposable media to remove finer particulate from the stream. Dixon Sanitary holds Authorization Number 1446 for the 3-A Sanitary Standard for Filters using Single Service Filter Media, Number: 10-4. Vertical mounting is necessary to meet 3-A 10-04 requirements for minimal product clingage.
  • Strainer Definition:
    • A strainer is a device used to separate solids from fluids. Here it is used for larger particulate matter from liquid or gas. It uses cleanable media.
Features:
  • 3A sanitary, ID and OD.
  • Must be vertical mount to be 3A.
  • in-line units ship standard with the following: spring, distributor cap, clamp gasket, 1/4" perforated back-up tube, inlet and outlet bodies and squeeze clamp.
Part Number Size Dimensions
 Weight (Lbs.)
A B
BSCCQ1-R100 1" 15.75" 4.00" 10.5350
BSCCQ1-R150 1-1/2" 15.75" 4.00" 10.9700
BSCCQ1-R15018 1-1/2" (with 1/8" Holes) - - 10.9700
BSCCQ1-R200 2" 15.75" 4.00" 10.0200
BSCCQ1-R200-BF 2" (with EPDM BFV) - - 10.0200
BSCCQ1-R20018 2" (with 1/8" Holes) - - 10.0200
BSCCS1-R250 2-1/2" 15.75" 4.50" 10.7250
BSCCS1-R25018 2-1/2" (with 1/8" Holes) - - 10.7250
BSCCS1-R300 3" 15.75" 4.50" 10.6150
BSCCS1-R30018 3" (with 1/8" Holes) - - 10.6150
