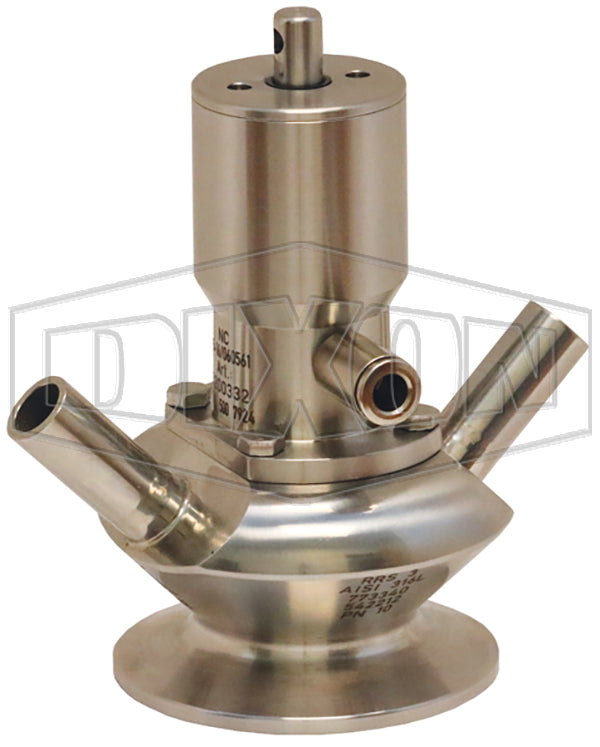

BSVD-PC200B375 Dixon Valve/Rieger 3A Sample Valve - Dual Port with Pneumatic Actuator (without Lever) - 2" Clamp Valve - 3/8" Weld Port

BSVD-PC200B375 Dixon Valve/Rieger 3A Sample Valve - Dual Port with Pneumatic Actuator (without Lever) - 2" Clamp Valve - 3/8" Weld Port

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings
Dixon Valve/Rieger 3A Sample Valve - Dual Port with Pneumatic Actuator (without Lever)

The BSV Series sample valve allows easy and safe sampling of liquids from closed systems such as vessels and pipelines.

These valves are located in the pharmaceutical, bio-pharmaceutical, biochemical, cosmetic, food, dairy and beverage markets.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BSVD-PC200B375 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel, 304 Stainless Steel
Features:
  • Valve body made from solid bar
  • No dead space
  • Drainable
  • Connections suitable for orbital welding
  • Available with single or dual ports
  • Hermetically sealed against environment
  • Optimum cleanability
  • Change of seals without special tools
  • Long life of the PTFE-bellows
  • Low spare part costs
Construction:
  • Product contact metal: 316L stainless steel, ≤ 32Ra surface finish
  • Non-product contact metal: 304 stainless steel, ≤ 63Ra surface finish
  • Product contact seals: PTFE Bellows
Specifications:
  • Maximum pressure: 116 PSI
  • Actuator control air pressure: 87-145 PSI
  • Maximum temperature: 250°F (121°C)
  • Maximum cleaning temperature: 275°F (135°C) for 20 minutes
Part Number Clamp Valve Size Weld Port Size
BSVD-PC050B025 1/2" - 3/4" 1/4"
BSVD-PC050B050 1/2" - 3/4" 1/2"
BSVD-PC050B375 1/2" - 3/4" 3/8"
BSVD-PC100B025 1" - 1-1/2" 1/4"
BSVD-PC100B050 1" - 1-1/2" 1/2"
BSVD-PC100B375 1" - 1-1/2" 3/8"
BSVD-PC200B025 2" 1/4"
BSVD-PC200B050 2" 1/2"
BSVD-PC200B375 2" 3/8"
BSVD-PC250B025 2-1/2" 1/4"
BSVD-PC250B050 2-1/2" 1/2"
BSVD-PC250B375 2-1/2" 3/8"
BSVD-PC300B025 3" 1/4"
BSVD-PC300B050 3" 1/2"
BSVD-PC300B375 3" 3/8"
BSVD-PC400B025 4" 1/4"
BSVD-PC400B050 4" 1/2"
BSVD-PC400B375 4" 3/8"
Replacement Parts
Part Number Description Includes
BSV-NRKS050400 Repair Kit for BSV Sample Valves (1) Silicone O-ring
(1) PTFE Bellows
