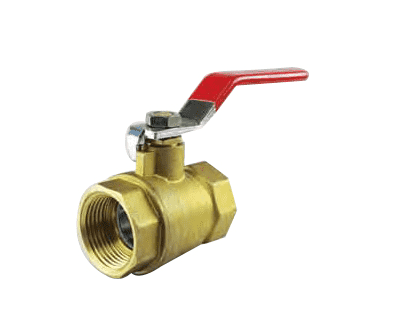

BV100BF by Jason Industrial | Ball Valve | 1" Female NPT x 1" Female NPT | Brass

Name: BV100BF by Jason Industrial | Ball Valve | 1" Female NPT x 1" Female NPT | Brass
Brand: Jason Industrial Inc
SKU: BV100BF Jason
Price: 17.37 USD
Availability: InStock

Save $0.17

$17.54

$17.54 - $17.54

$17.54

$17.37

$17.37 - $17.37

$17.37

Jason Industrial Inc. Couplings & Accessories - Accessories - Brass Ball Valves - Female NPT x Female NPT

Quantity

Specifications for Variant SKU: BV100BF Jason
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Female NPT, Some Ends Match
Material(s):	Brass
Seal Material(s):	PTFE

Features:
Sizes to 2" rated 600 WOG 2-1/2", 3" and 4" rated 400 WOG Brass ball is chromium plated Ball seat is Teflon®
Ball Valve Components:
Valve Body: Brass Valve Cap: Brass O-Ring: PTFE Ball: Brass, chrome-plated Stem Spacer/Gasket: PTFE Stem: Brass Nut: Brass Cap: Brass Handle: Carbon Steel
Safety Warnings:
Please do not mix Jason Industrial couplings with other products.

Part Number	Size		Femlae NPT Thread
	in.	mm
BV025BF	1/4"	6.4"	1/4" NPT
BV038BF	3/8"	9.9"	3/8" NPT
BV050BF	1/2"	14.0"	1/2" NPT
BV075BF	3/4"	19.0"	3/4" NPT
BV100BF	1"	24.0"	1" NPT
BV125BF	1-1/4"	31.0"	1-1/4" NPT
BV150BF	1-1/2"	38.0"	1-1/2" NPT
BV200BF	2"	49.0"	2" NPT
BV250BF	2-1/2"	64.0"	2-1/2" NPT
BV300BF	3"	79.0"	3" NPT
BV400BF	4"	99.0"	4" NPT

Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.

Shop Parts by Jason Industrial
