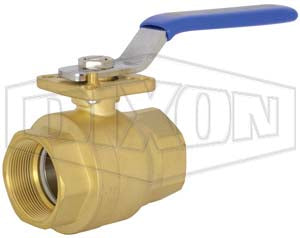

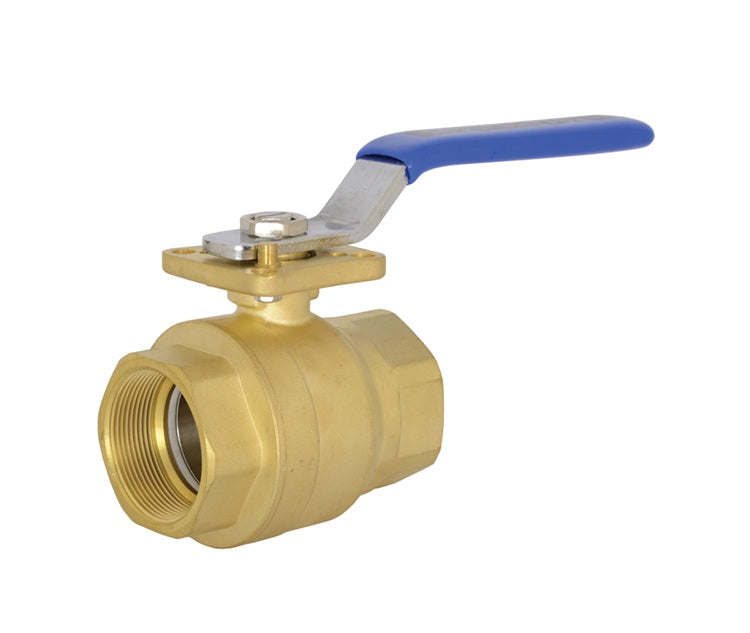

BV2BV-12511-A Dixon Valve 1-1/4" Two-Piece Industrial Brass Ball Valve - Female NPT x Female NPT - PTFE Seat - Standard Handle

BV2BV-12511-A Dixon Valve 1-1/4" Two-Piece Industrial Brass Ball Valve - Female NPT x Female NPT - PTFE Seat - Standard Handle

Save $105.26 Save $105.26
$263.15
$263.15 - $263.15
$263.15
$157.89
$157.89 - $157.89
$157.89

Dixon Sanitary Valves
Two-Piece Industrial Brass Ball Valve | Female NPT x Female NPT | PTFE Seat | Standard Handle
Specifications for Variant SKU: BV2BV-12511-A Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
Material(s): Brass
Seal Material(s): PTFE

What are the Features?

  • Full port
  • Female NPT ends
  • Blow-out proof stem
  • ISO 5211 mounting pad

How is it Constructed?

  • PTFE seats with O-ring backing
  • Double O-ring stem packing
  • ISO 5211 mounting pad

What are the Specifications?

  • Maximum Operating Pressure: 600 PSI WOG
  • Maximum Temperature: 320°F (160°C)
Part Number Size Body Seat Handle Dimensions
A B C D E F Break Torque (in. lbs.)
BV2BV-05011-A 1/2" Brass PTFE Standard 4.40" 1.51" 2.16" F04 - 9mm 86 in. lbs.
BV2BV-07511-A 3/4" Brass PTFE Standard 4.40" 1.63" 2.80" F04 F05 11mm 149 in. lbs.
BV2BV-10011-A 1" Brass PTFE Standard 5.40" 1.76" 3.23" F04 F05 11mm 193 in. lbs.
BV2BV-12511-A 1-1/4" Brass PTFE Standard 7.30" 2.13" 3.58" F05 F07 11mm 290 in. lbs.
BV2BV-15011-A 1-1/2" Brass PTFE Standard 7.80" 2.32" 4.06" F05 F07 11mm 470 in. lbs.
BV2BV-20011-A 2" Brass PTFE Standard 7.80" 2.65" 4.76" F05 F07 14mm 634 in. lbs.
BV2BV-25011-A 2-1/2" Brass PTFE Standard 7.10" 3.93" 6.10" - F07 17mm 725 in. lbs.
BV2BV-30011-A 3" Brass PTFE Standard 7.10" 4.32" 6.90" - F07 17mm 800 in. lbs.
BV2BV-40011-A 4" Brass PTFE Standard 7.10" 4.93" 8.10" - F07 17mm 1062 in. lbs.
