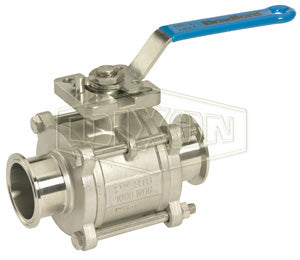

BV2CS-100CC-A Dixon Valve 1" Two-Way Encapsulated Sanitary 3 Piece Clamp End Ball Valve - Stainless Steel - Standard Handle - Seat: 50% Stainless Steel Reinforced PTFE

BV2CS-100CC-A Dixon Valve 1" Two-Way Encapsulated Sanitary 3 Piece Clamp End Ball Valve - Stainless Steel - Standard Handle - Seat: 50% Stainless Steel Reinforced PTFE

Save $269.31 Save $269.31
$673.27
$673.27 - $673.27
$673.27
$403.96
$403.96 - $403.96
$403.96

Dixon Valve
BV2-Series | 3 Piece Two-Way Sanitary Ball Valve | Clamp Ends | Standard Handle

Stainless Steel valve with 50% Stainless Steel Reinforced PTFE Seat.
Specifications for Variant SKU: BV2CS-100CC-A Dixon
Shape (Orientation): Straight
Material(s): Stainless Steel
Seal Material(s): PTFE & Stainless Steel
Sanitary Ball Valves

Dixon Valve | BV2-Series
3 Piece Sanitary Ball Valve | Clamp Ends

Stainless Steel valve with 50% Stainless Steel Reinforced PTFE Seat.

1

What are the main product features?
  • Live-loaded stem packing.
  • Lockable handle can prevent accidental actuation.
  • Standard internal entry blow out proof stem design.
  • Compact design for areas with tight space restrictions.
  • Balanced encapsulated construction minimizes cold flow.
  • Precision stainless steel balls reduce torque and friction losses while extending seat life.
  • Full port design matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow.
2

What are the construction specifications?
  • ID polish is Ra 32 minimum.
  • Integral ISO 5211 mounting pad.
  • Material: CF8M Stainless Steel.
  • Fully encapsulated construction produces bubble tight seal.
  • 50% stainless steel filled tetrafluoroethylene seal, Food Grade Material: Specified for higher temperature pressure applications in a sanitary process.
3

What are the specifications?
  • Pressure Rating: 1000 PSI WOG.
4

Which sizes or configurations are available?
Part Number Size Dimensions
A B C D E F
(mm)		 G
(mm)		 H
(mm)		 Break Torque
in. lbs.
BV2CS-050CC-A 1/2" 4.3" 4.9" 1.5" 2.0" 3.1" 36mm 42mm 9mm 41 in. lbs.
BV2CS-100CC-A 1" 4.9" 5.4" 2.1" 2.4" 3.6" 42mm 50mm 11mm 140 in. lbs.
BV2CS-150CC-A 1-1/2" 5.6" 9.3" 2.7" 3.2" 4.4" 50mm 70mm 14mm 316 in. lbs.
BV2CS-200CC-A 2" 6.4" 9.3" 3.1" 3.8" 4.7" 50mm 70mm 14mm 340 in. lbs.
BV2CS-250CC-A 2-1/2" 7.8" 18.0" 3.8" 4.9" 5.2" 70mm 102mm 17mm 1198 in. lbs.
BV2CS-300CC-A 3" 9.0" 18.3" 4.2" 5.4" 5.7" 70mm 102mm 17mm 2196 in. lbs.
BV2CS-400CC-A 4" 9.6" 18.3" 5.3" 8.7" 6.9" 102mm 125mm 22mm 2698 in. lbs.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
